11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-
plication, special tools
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
The cartridge group is already fitted at this point in time. The cartridge group is not illus-
trated in the following images so that all work steps are visually clear.

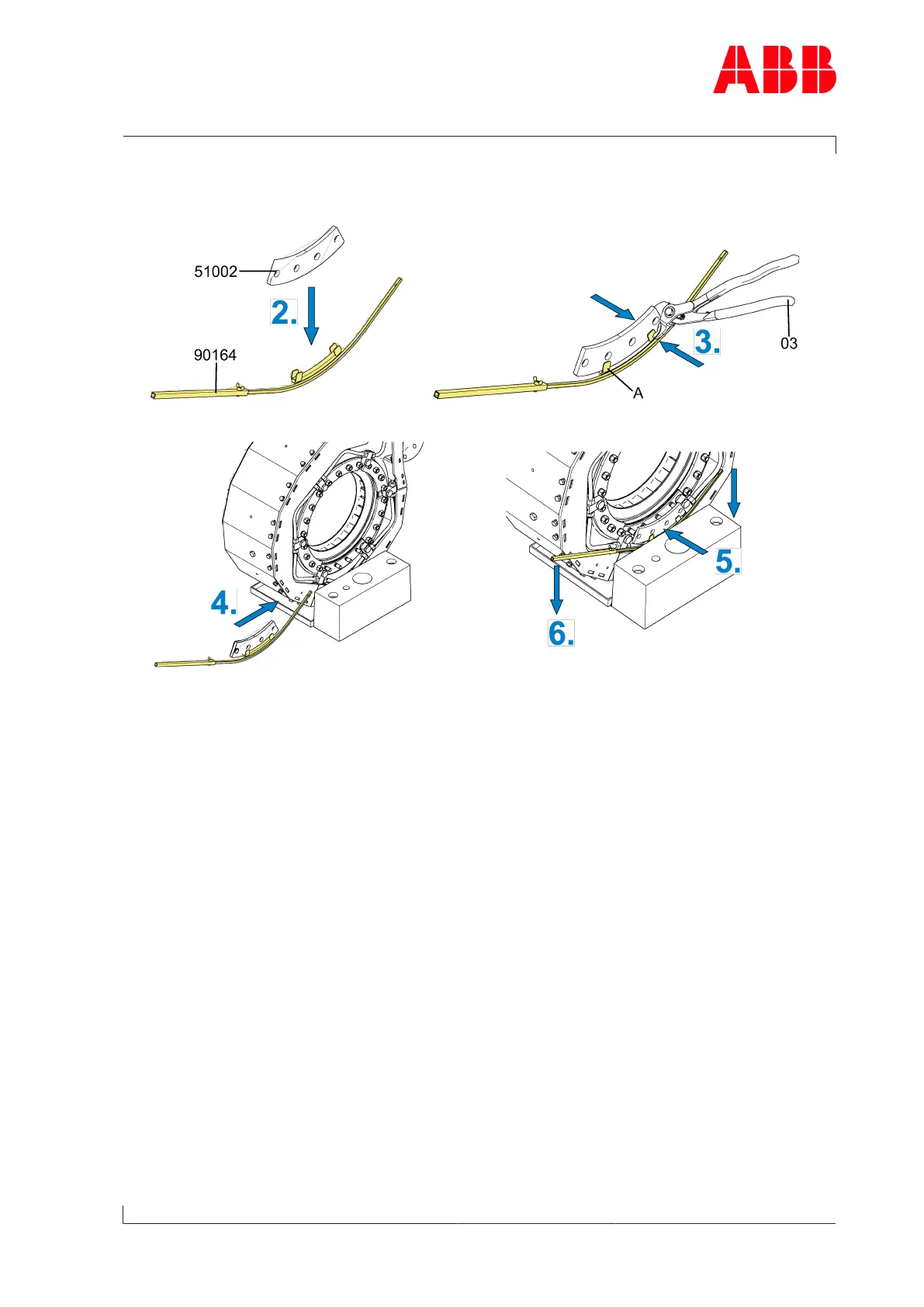

Fig.100: Positioning the fastening strip
2. Position fastening strip (51002) in the tool disassembly segment (90164).
3. Clamp the strips (A) of the tool disassembly segment slightly using the universal pliers
(03) to fix the fastening strip.
4. Position the fastening strip with the segment disassembly tool onto the set screws.
5. Push the fastening strip with the segment disassembly tool in the direction of the tur-
bine casing as far as possible.
6. Depress the segment disassembly tool and remove it.
