Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-
plication, special tools
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
Fitting the fastening strips

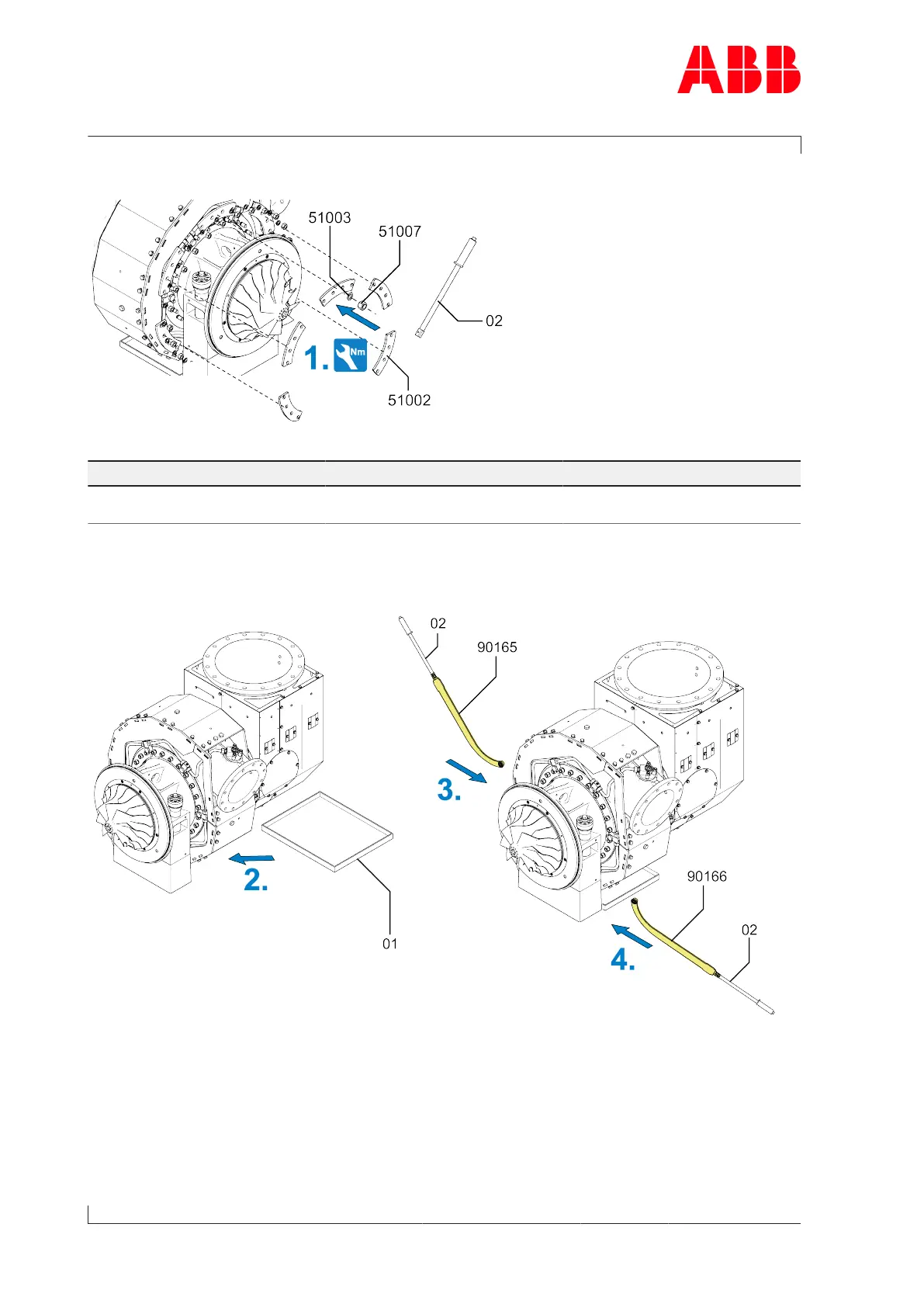

Fig.96: Fitting the upper fastening strips
Part number A150-M A155-M
51007 M16
175 Nm
M16
175 Nm
Table65: Tightening torque (51007)
1. Fit the nuts (51007) of the (upper) fastening strips (51002) illustrated and tighten with a
torque spanner (02) without a spanner holder. Observe the tightening torque.
Fig.97: Fitting the bottom fastening strip
2. Position the collection tub (01) to catch any fixing elements if they fall.
3. Tighten the two nuts on one side by using the spanner holder (90165).
4. Tighten the two nuts on the other side by using the spanner holder (90166).
The cartridge group is fitted at this point in time. To enable a clear representation of the
work step, the cartridge group is not illustrated in work step 5.
Page 130 / 161
