9 Dismantling and fitting with removed air inlet and gas outlet / 9.13
Installing the compressor casing
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
Installing the compressor casing

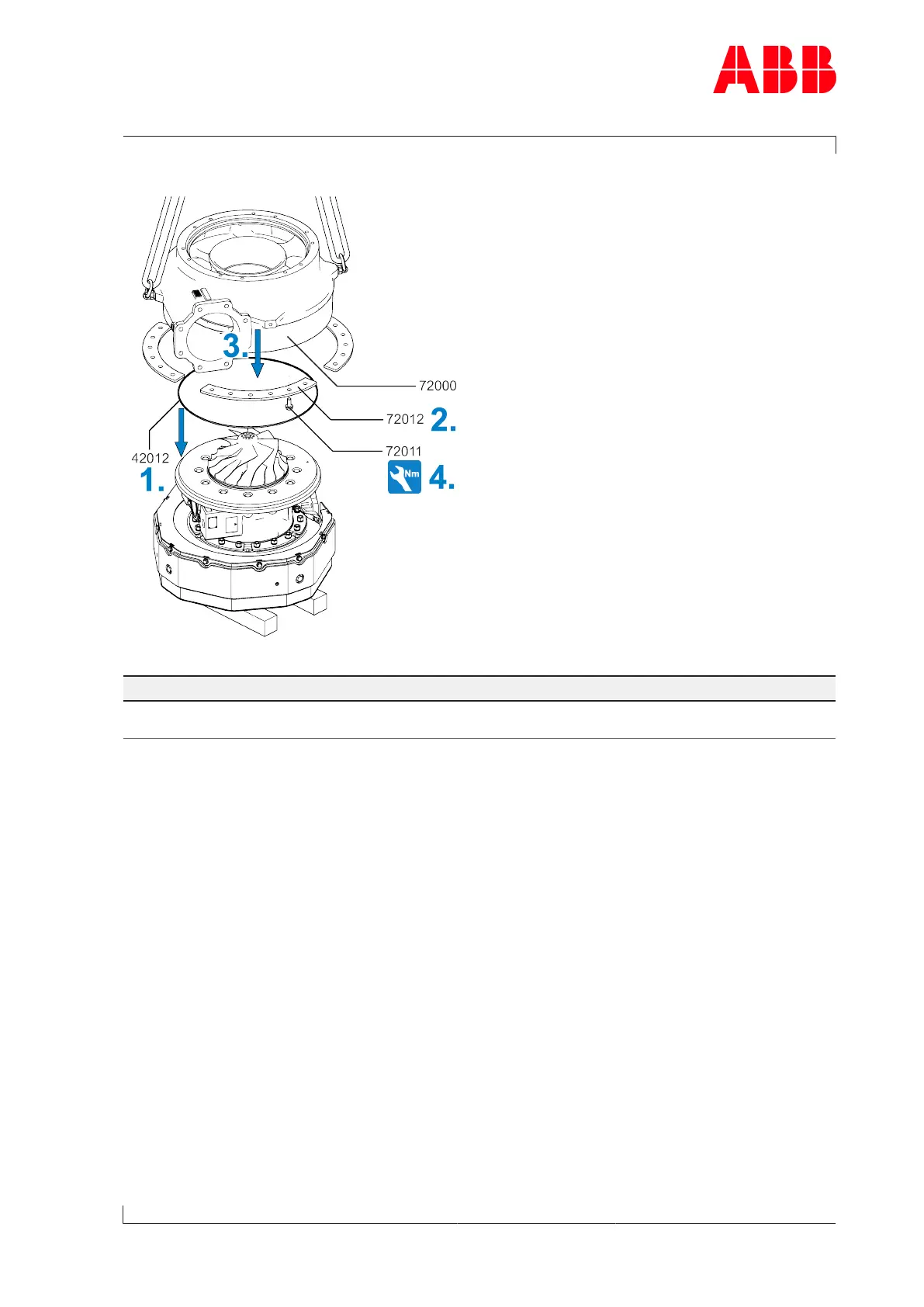

Fig.59: Installing the compressor casing
Part number A150-M A155-M
72011 M16
275 Nm
M18
370 Nm
Table47: Tightening torque (72011)
1. Fit a new O-ring(42012).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Install the compressor casing(72000).
4. Install the fastening strips(72012) with screws(72011). Observe the tightening torque.
