Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
13 Fitting the cleaning nozzles with multi-inlet turbine casings /
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
13 Fitting the cleaning nozzles with multi-
inlet turbine casings

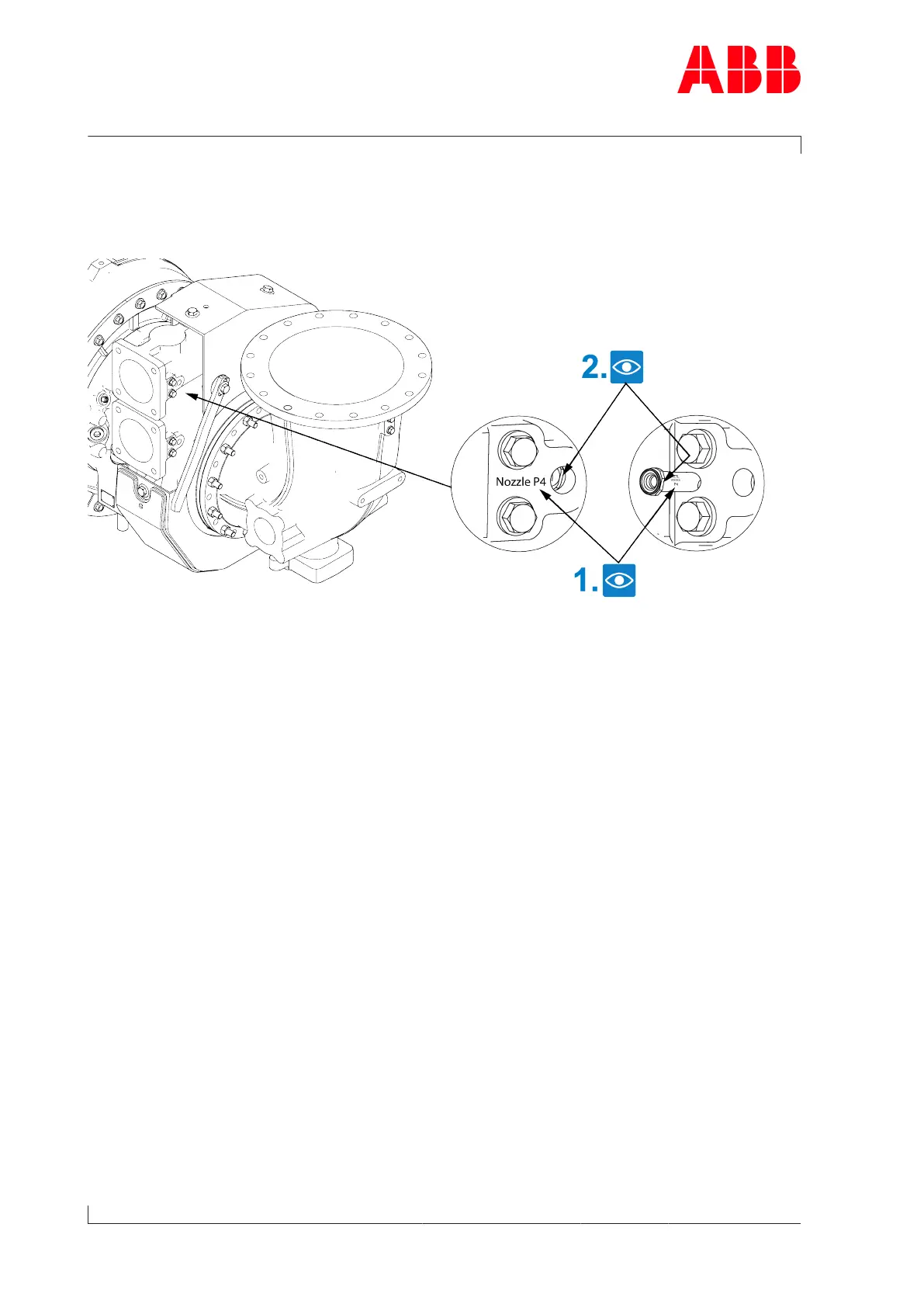

Fig.114: Fit the cleaning nozzles
1. The designation(P . ) on the turbine casing must correspond with the designation(P . )
on the cleaning nozzle.
2. The edges for the defined installation position in the turbine casing and at the cleaning
nozzle must correspond.
Page 142 / 161
