ABB HT580635 - Table 45: Tightening Torque (51007)

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.12
Installing the cartridge group
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

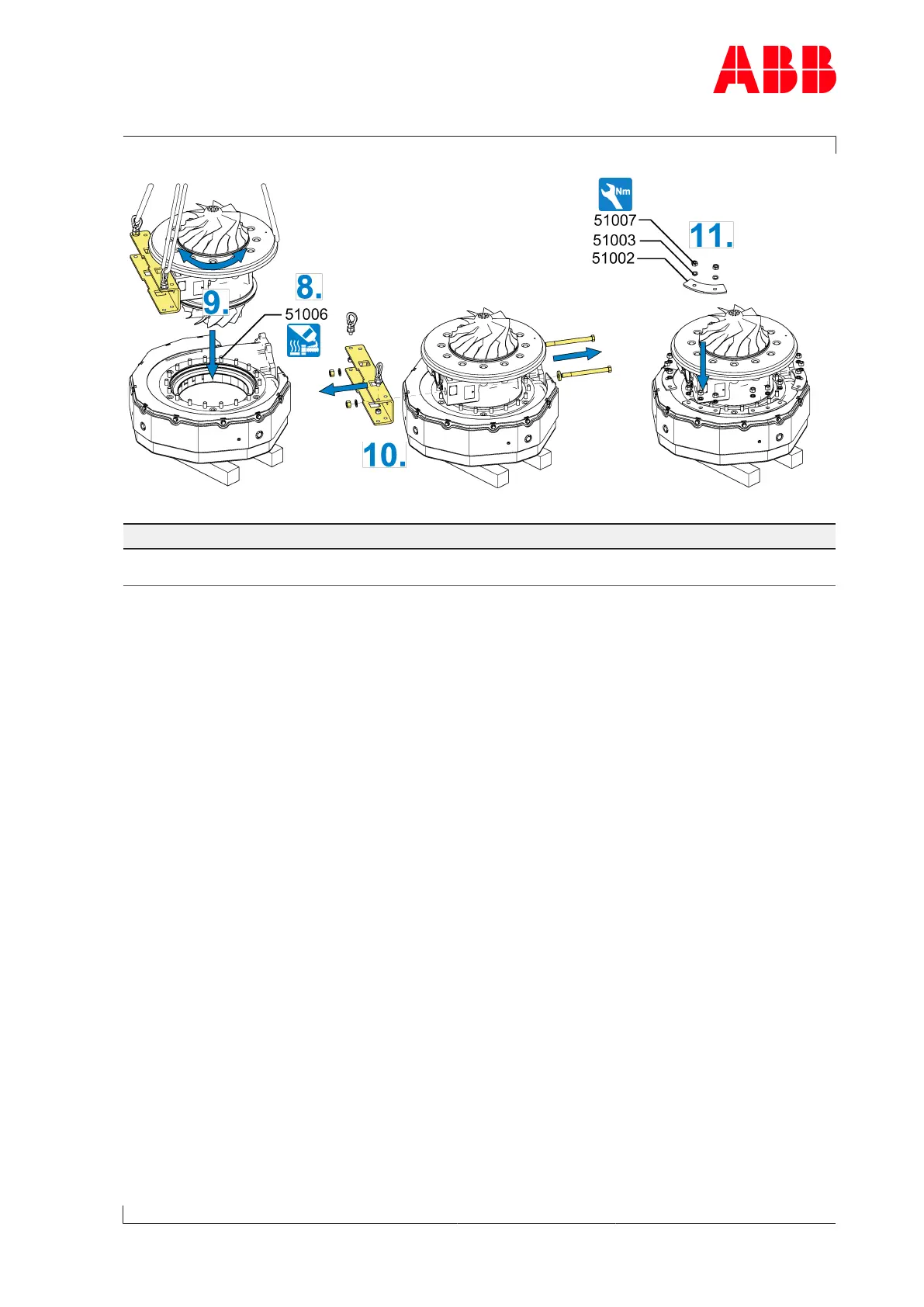

Fig.57: Installing the cartridge group
Part number A150-M A155-M
51007 M16
175 Nm
M16
175 Nm
Table45: Tightening torque (51007)
8. Coat the threads of the studs(51006) with high-temperature grease.
9. Align casing position of cartridge group with marking and lower into the turbine casing.
10. Remove lifting gear cross-piece of service support.
11. Install the fastening strips(51002) with Verbus Ripp® washers(51003) and hexagon
nuts(51007). Observe the tightening torque.
Page 95 / 161
