12 Removing and installing 6-nozzle turbine cleaning component (op-
tional) / 12.1 Disassembly
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

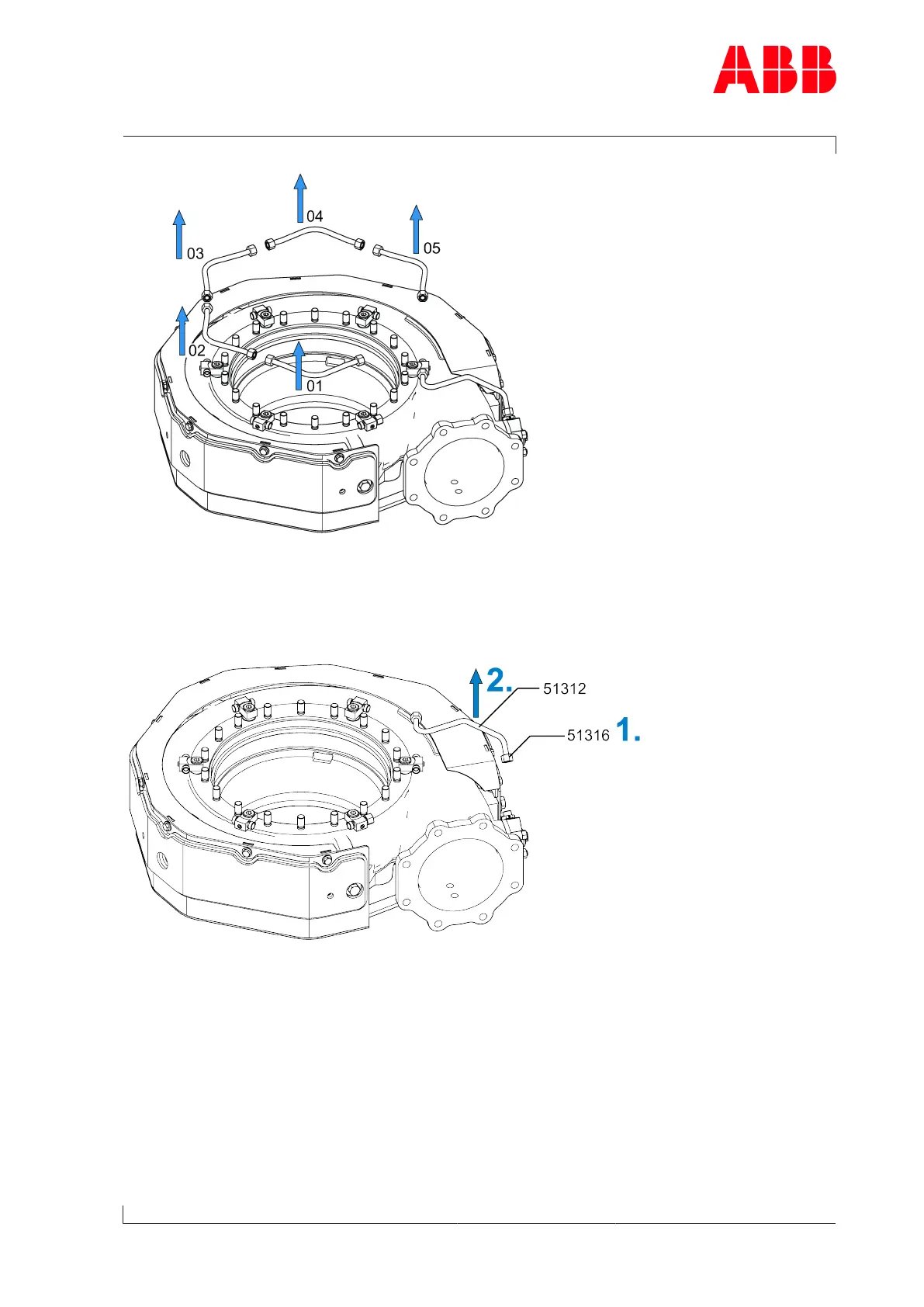

Fig.105: Disassembly of the elbows
u Remove the elbows (51311) from the connecting pieces (51313) in the specified order (01,
02, 03, 04, 05).
Fig.106: Pipe disassembly
1. Undo union nuts (51316) of pipe (51312).
2. Remove pipe.
