9 Dismantling and fitting with removed air inlet and gas outlet / 9.6
Removing the cartridge group
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

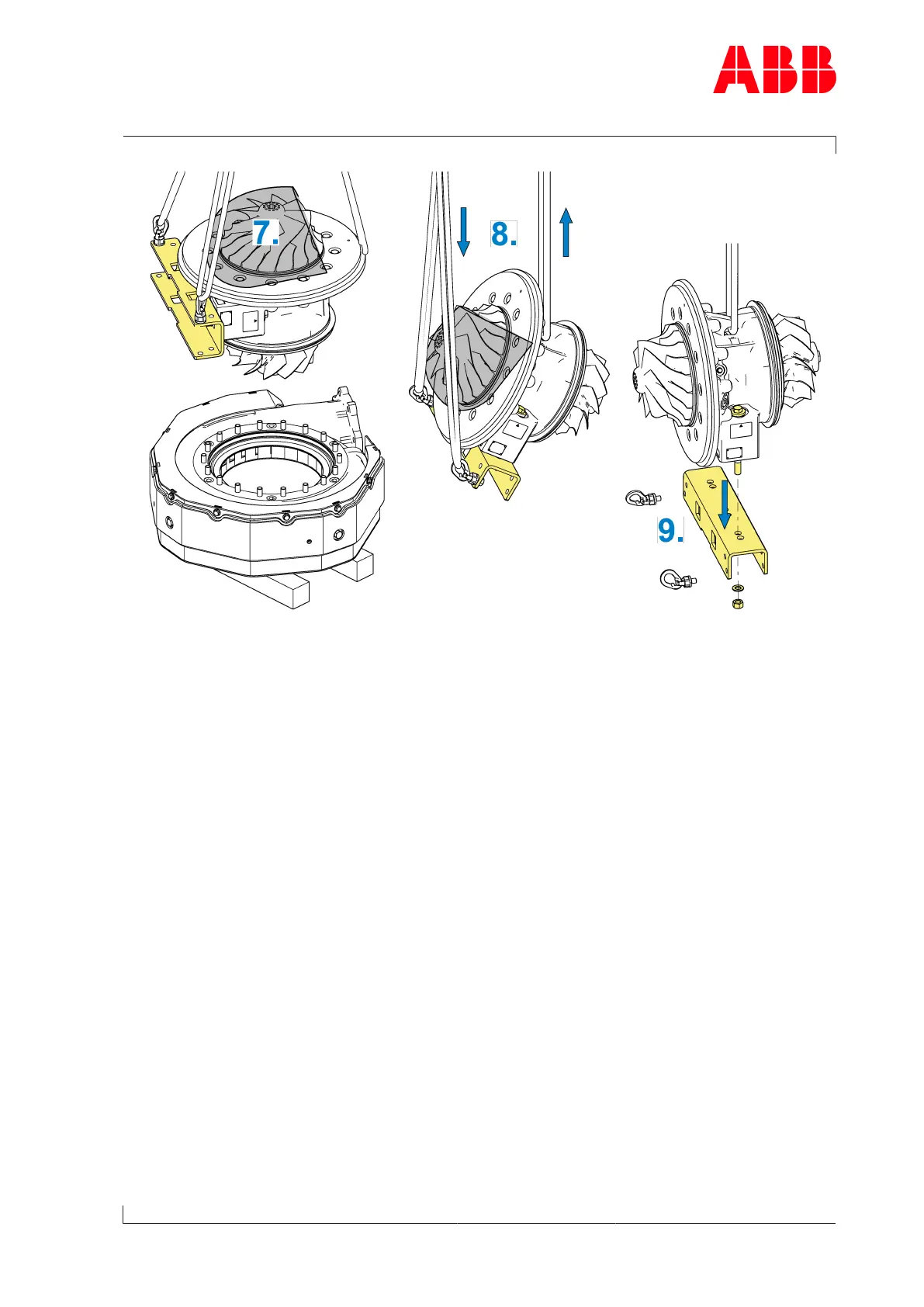

Fig.49: Remove cartridge group 3
7. Place a suitable protective cover over the compressor wheel.
8. Turn the cartridge group into the horizontal rotor axis.
9. Remove lifting gear from service support and cross-piece.
