Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
14 Taking out of operation at short notice / 14.5 Cover plate drawing
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018
14.5 Cover plate drawing
The cover plate is not included in the ABB Turbo Systems scope of delivery and must be
manufactured by the operating company according to the following drawing.
Material: General structural steel, in compliance with DINEN10025-2.

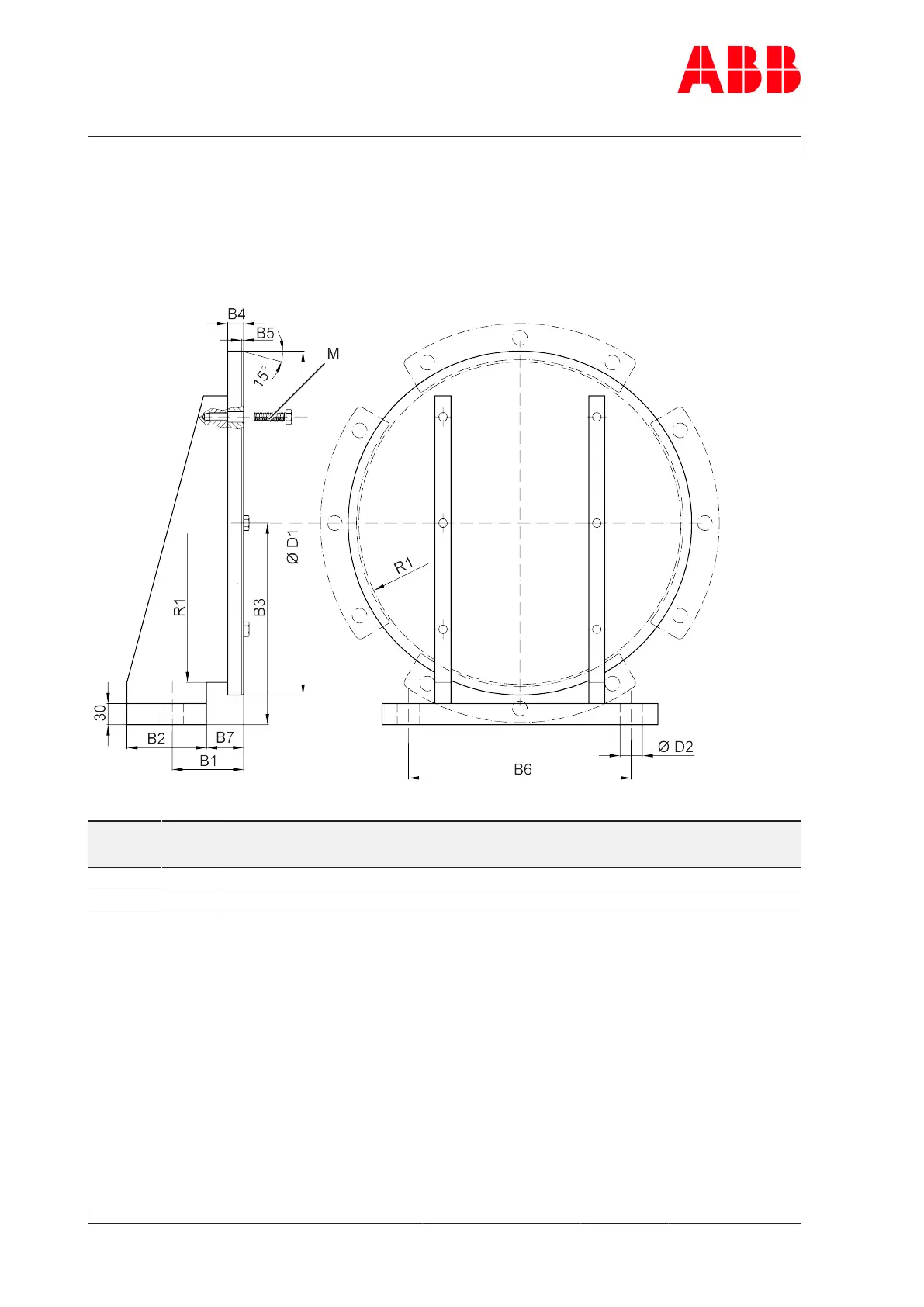

Fig.116: Cover plate drawing
Product B1
± 0.5
B2 B3 B4
± 0.2
B5 B6
± 0.1
B7 ØD1
± 0.2
ØD2 R1 M
A150 138.9 135 240 21.4 2.0 320 71.4 413.6 33 ≤196 M12
A155 164.6 160 286.5 25.5 2.0 385 84.6 492 39 ≤232 M16
Table72: Cover plate dimensions [mm]
Page 146 / 161
