Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.12
Installing the cartridge group
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

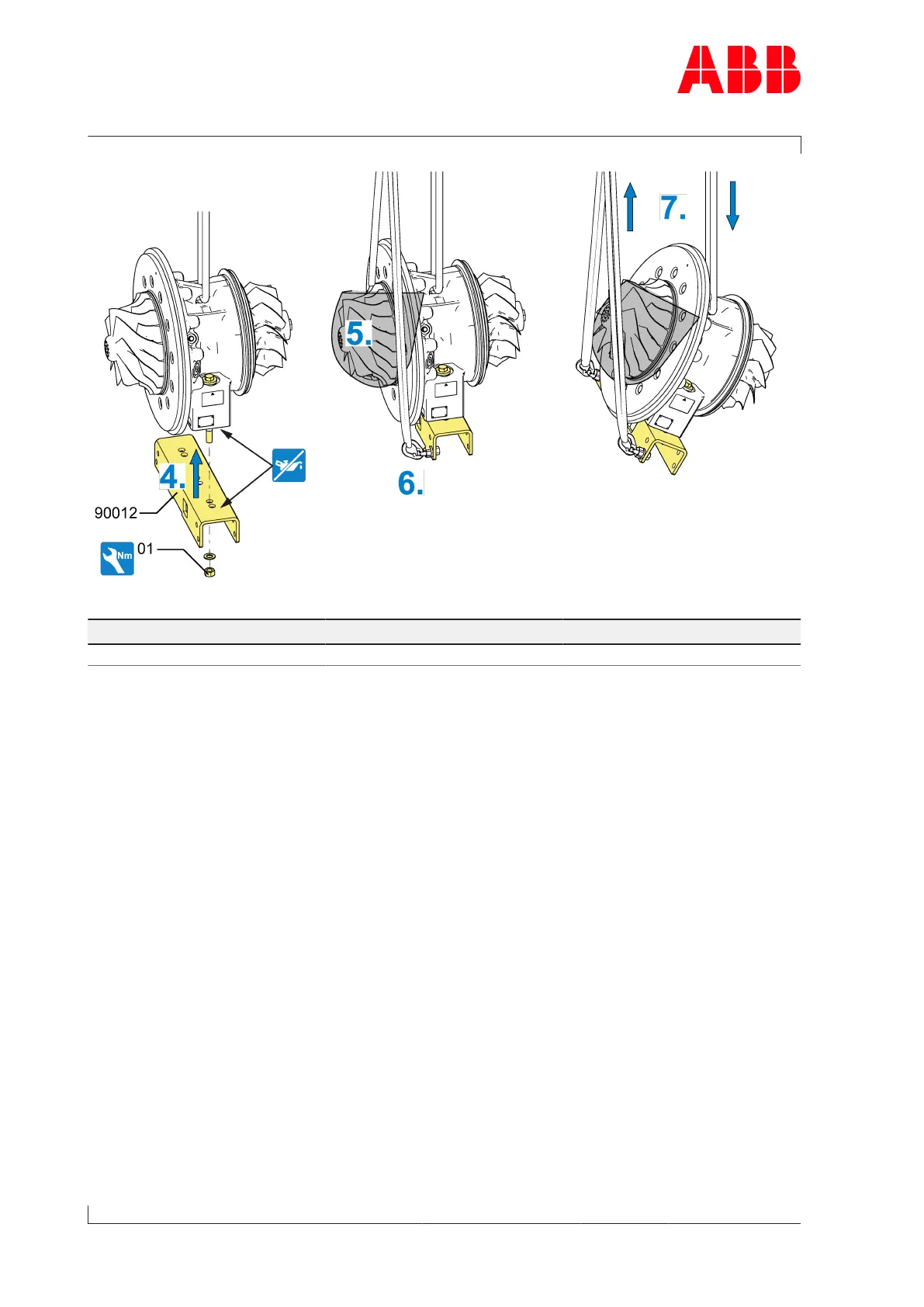

Fig.56: Turning the cartridge group
Position A150-M A155-M
01 150 Nm 150 Nm
Table44: Tightening torque (90012-01)
4. Re-fit the cross-piece of the service support (90012). Observe the tightening torque.
5. Place the protective cover over the compressor wheel.
6. Secure the second set of lifting gear to the cross-piece with a swivel lifting eye. The
length of the lifting gear must be selected in such a way that the compressor wheel is
not touched.
7. Turn the cartridge group into the vertical position of the rotor axis.
Page 94 / 161
