ABB HT580635 - Fig. 98: Fitting the Bottom Fastening Strip; Table 66: Tightening Torque (51007) with Spanner Holder

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-
plication, special tools
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

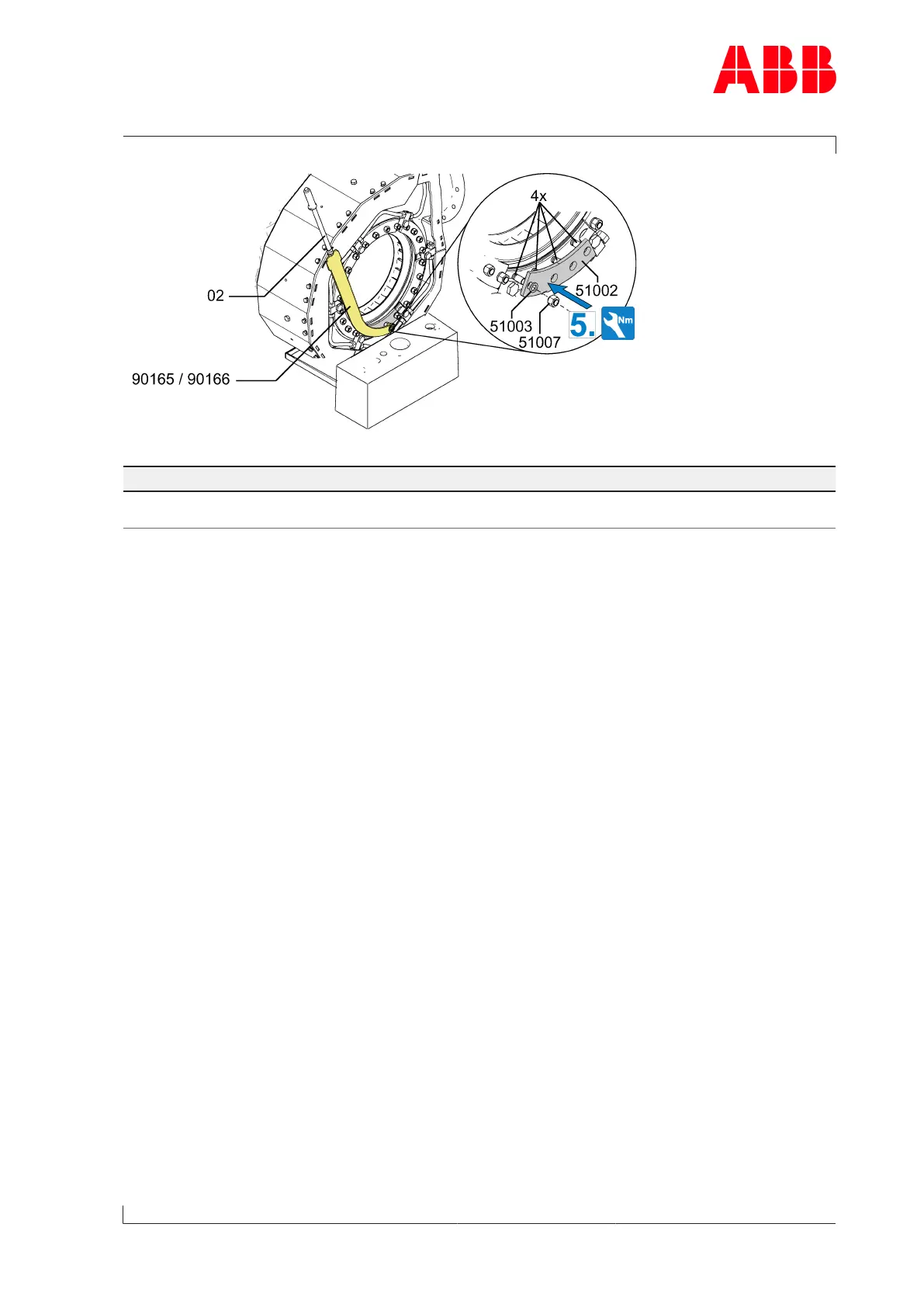

Fig.98: Fitting the bottom fastening strip
Part number A150-M A155-M
51007 with spanner holder M16
85 Nm
M16
70 Nm
Table66: Tightening torque (51007) with spanner holder
5. Fit the nuts (51007) with spanner holder (90165 / 90166) and attached torque spanner
(02). Observe the tightening torque.
