ABB HT580635 - Fig. 117: Dimensions for Cover Plate; Table 73: Cover Plate Dimensions [MM]

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
14 Taking out of operation at short notice / 14.5 Cover plate drawing
© Copyright 2018 ABB. All rights reserved. HZTL4032_EN Revision H July 2018

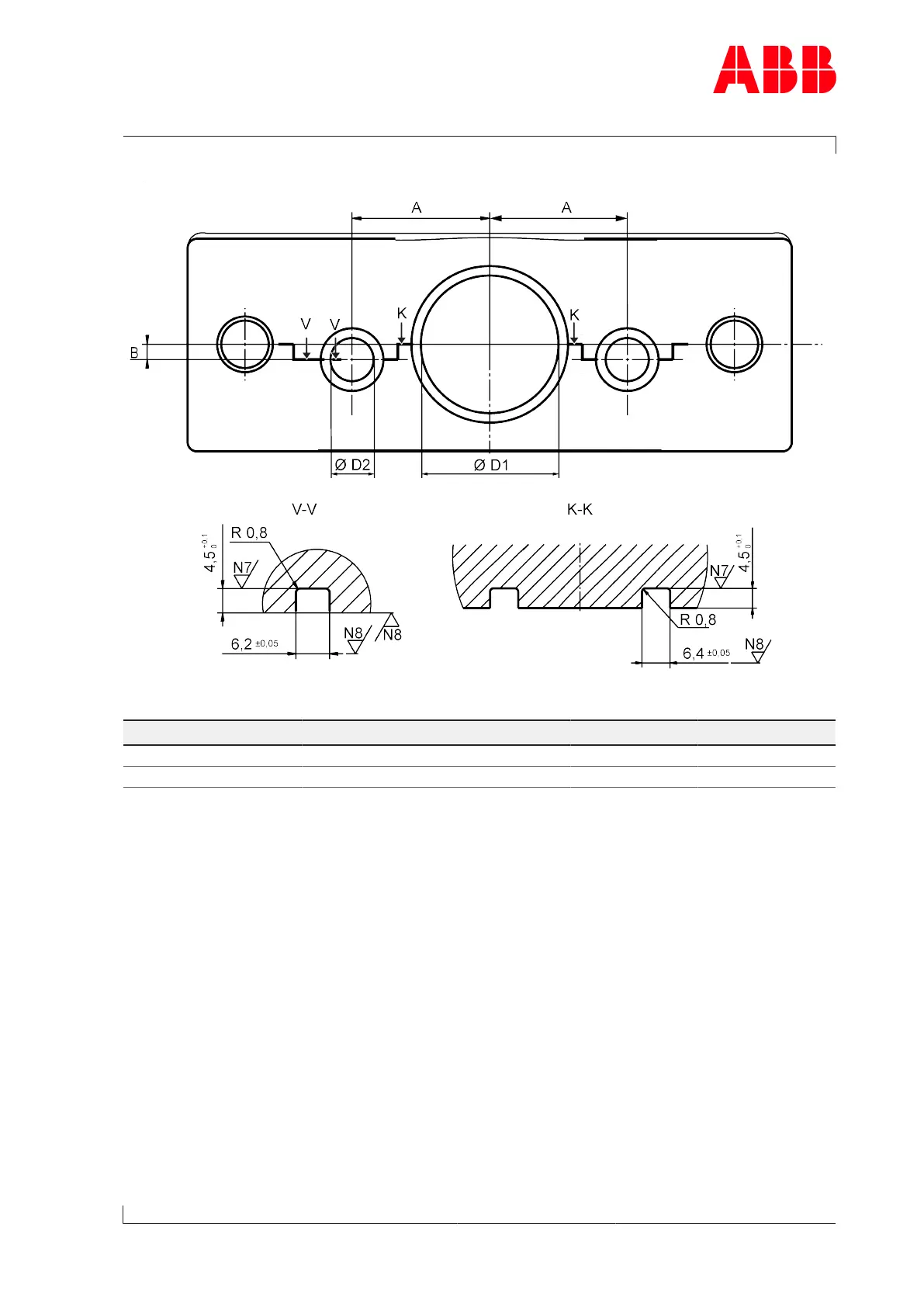

Fig.117: Dimensions for cover plate
Product A B D1 D2± 0.1
A150 90 10 90± 0.2 28.2
A155 107 12 111± 0.1 37.2
Table73: Cover plate dimensions [mm]
