HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 103 of 128
5.18. Install masks plate work
Preconditions:
The masks plates are unloaded from the delivery truck.
Packing foil are removed from the plate work.
The work must be carried out by at least two persons.
Tools: boom lift, spanner (size 10).
Make sure that the main switch of the power supply group for the product
is set to the OFF position. Do a voltage check to make sure that the
electrical power is disconnected from the system.
Make sure that personnel cannot be crushed or get stuck while moving
the parts of the Charge control set.
Make sure that personnel cannot be falling from the platform when
working at height.
Warranty
Damage due to moving the Charge control set to its position is not
covered by the warranty.

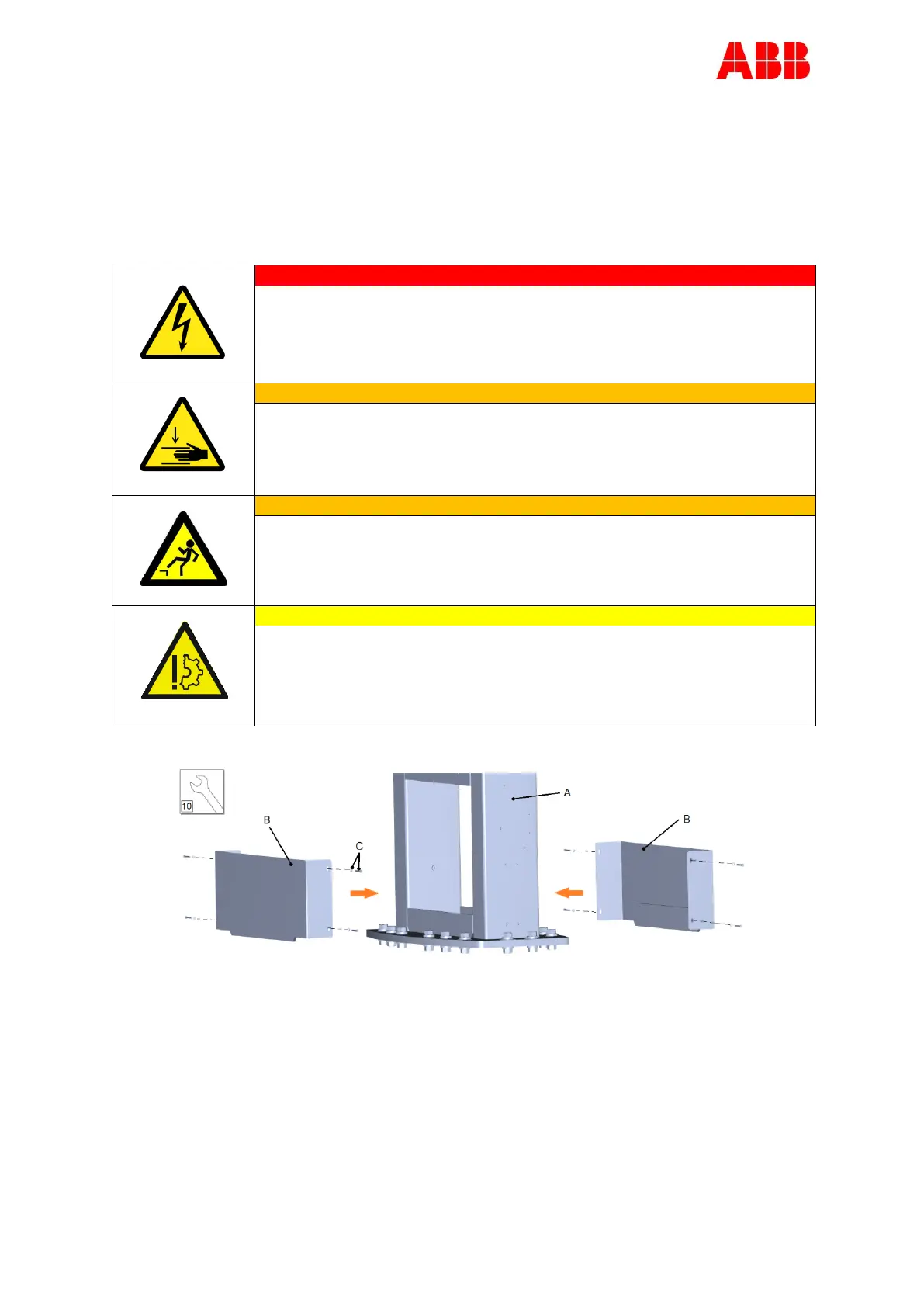

1. Put the two U-profiles (B) against the bottom of the vertical frame (A).
2. Insert the M6 bolts with the washers (C) into the holes (4x).
3. Tighten the bolts.
