HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 20 of 128

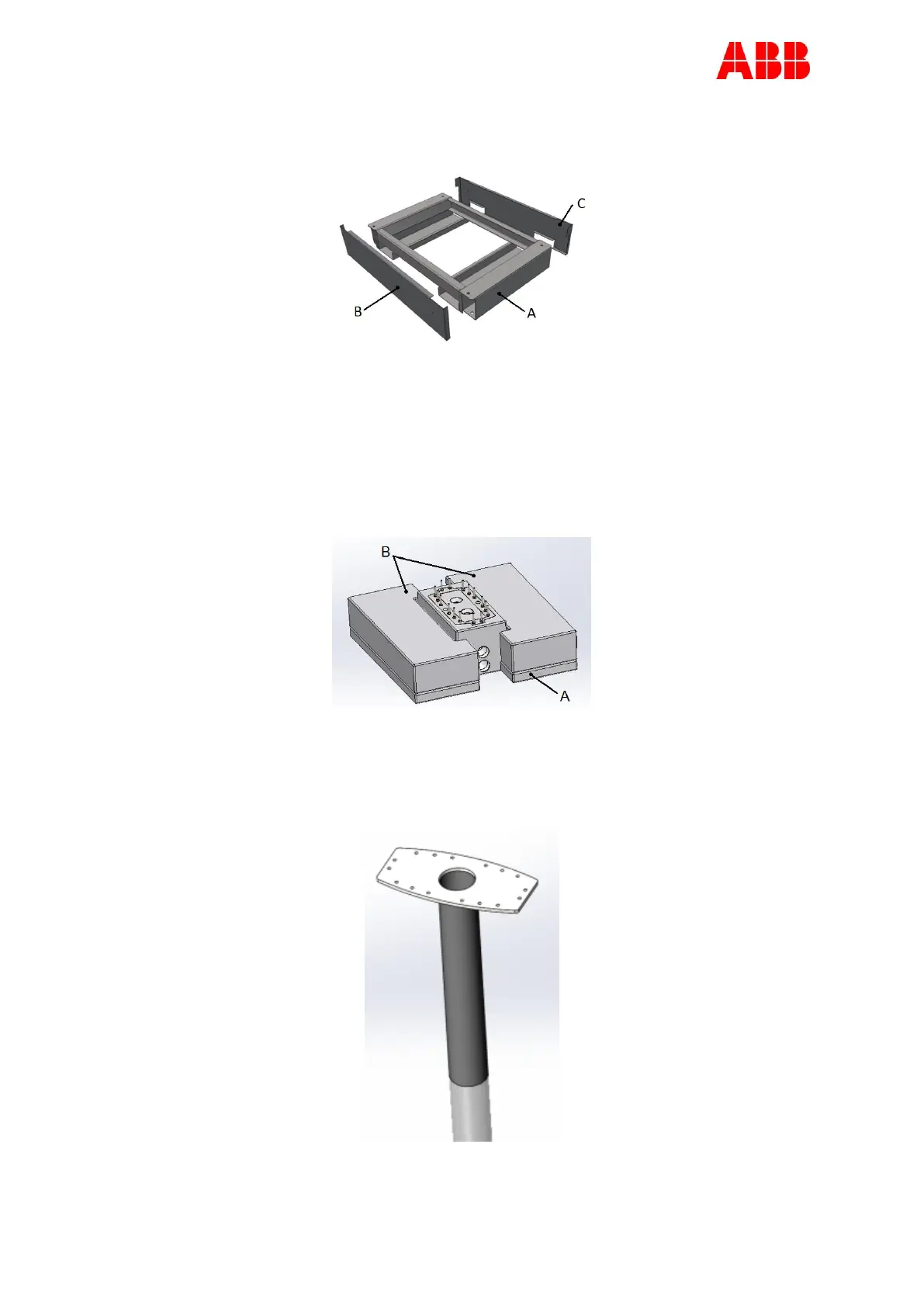

Metal frame foundation
The metal frame foundation can be used to install the Power Cabinet on a solid surface.
A Foundation
B Front border cover
C Rear border cover
2.2.2. Foundation for ABB Pole construction
Pre-fabricated concrete foundation
The pre-fabricated concrete foundation can be used to install the ABB Pole construction on
soil.
A Base plate
B Counter weights
Pulse tube foundation
The pulse tube foundation can be used to install the ABB Pole construction on soil.
