HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 80 of 128

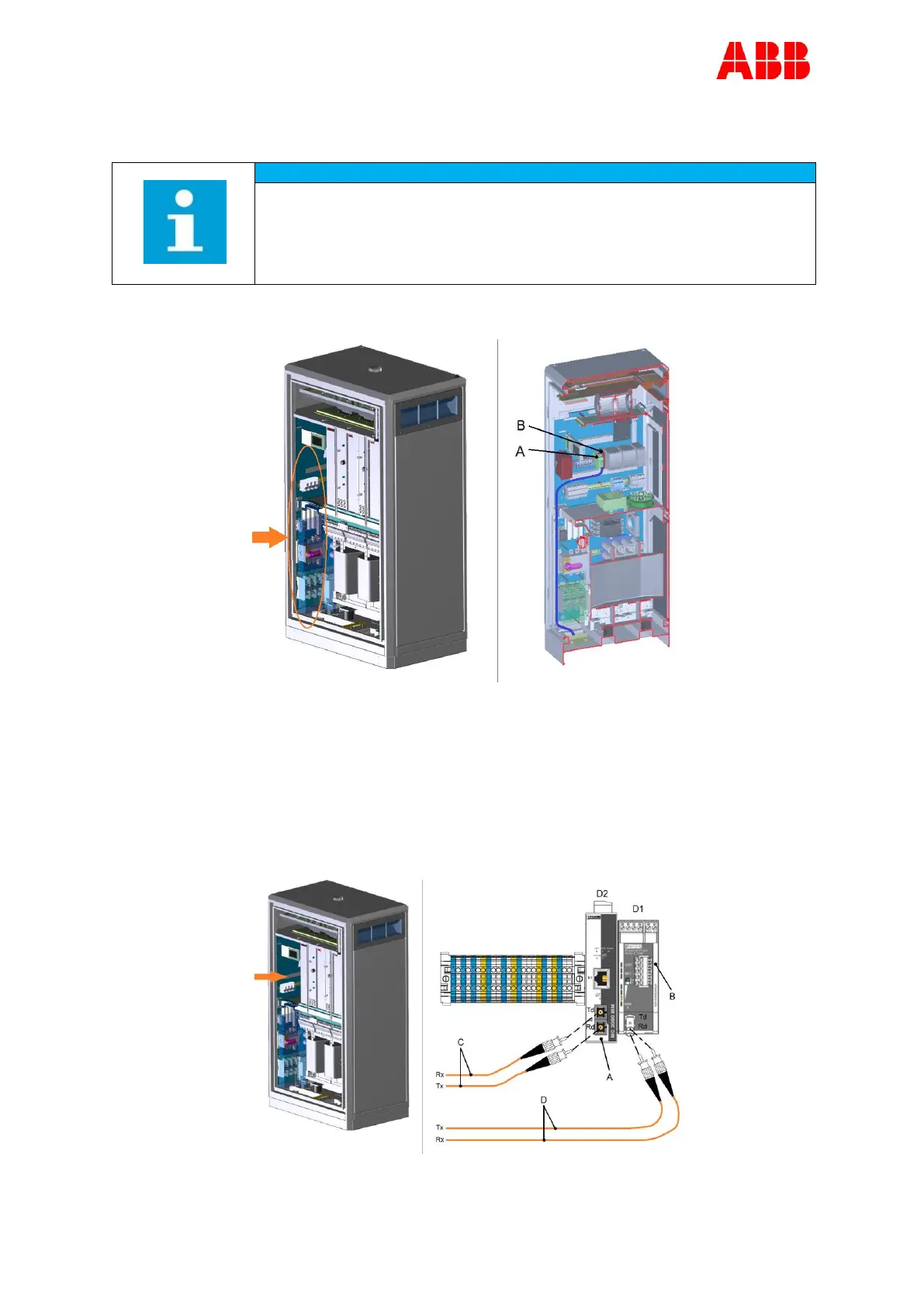

5.9. Connect the communication cable Power Cabinet
NOTICE
The communication fiber cables to the ACS Control Module are only
connected within the master HVC 150 Power Cabinet, see for more
details section Cabling on Page 46.
5.9.1. Route the cable to the terminal blocks
Preferred cable route
1. Route the communication fiber cable to module D1 (B) and D2 (A). Refer to the figure for
the preferred cable route inside the cabinet (only within the HVC 150).
5.9.2. Connect the communication fiber cables
Preconditions:
 Tools: tak-ty or ty-raps
