HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 73 of 128

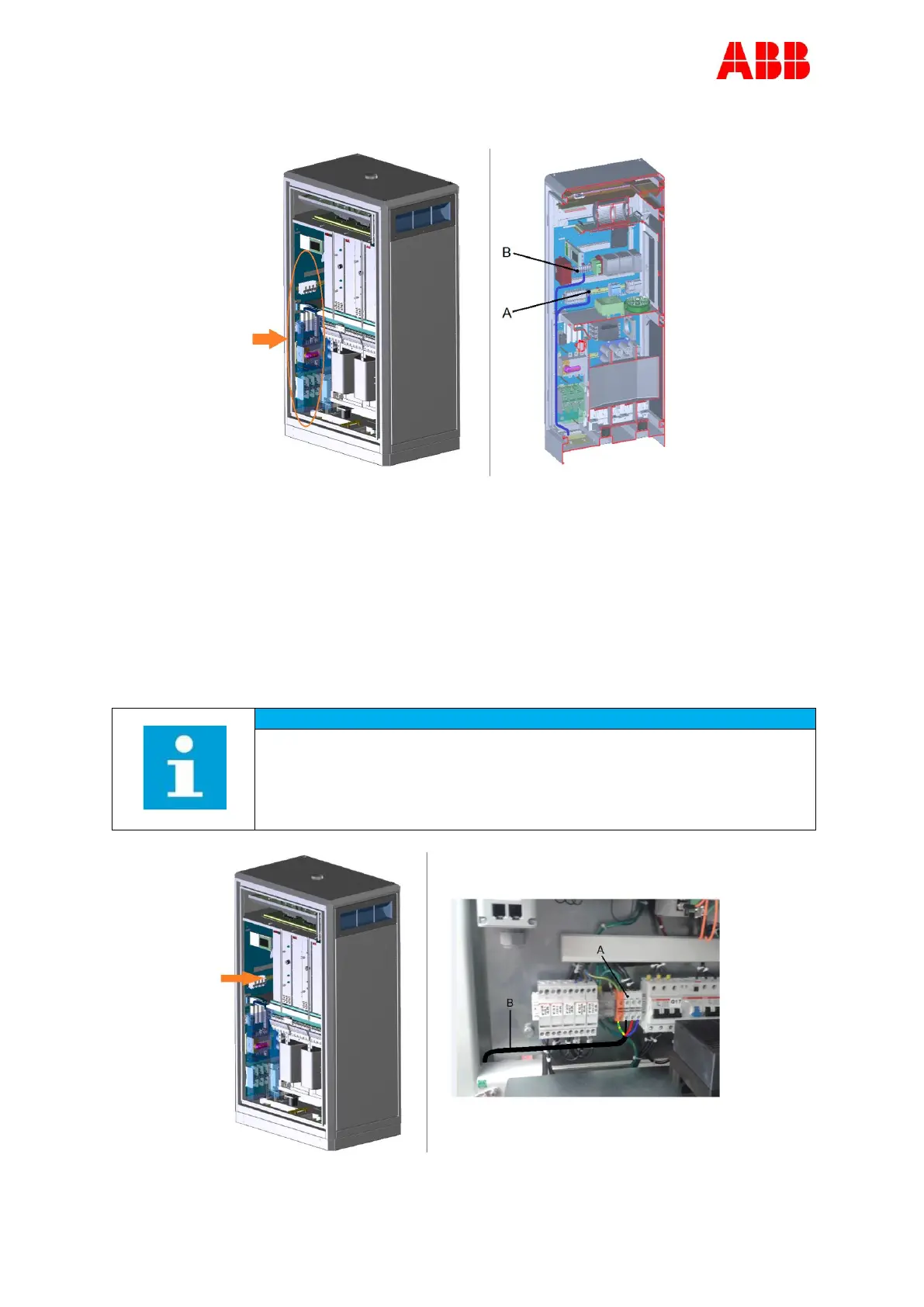

5.8.1. Route the cables to the terminal blocks
Preferred cable route
1. Route the AC utility cable to the terminal block (A). Refer to the figure for the preferred
cable route inside the cabinet (only within the HVC 150).
2. Route the Interlock cable(s) to the terminal block (B). Refer to the figure for the preferred
cable route inside the cabinet.
3. Route the CAN cable to the terminal block (B). Refer to the figure for the preferred cable
route inside the cabinet.
5.8.2. Connect the AC utility power cable
The AC utility power cable for the ACS Control Module is only connected
within the HVC 150 Power Cabinet, see for more details section Cabling
on Page 46.
