HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 56 of 128
1. Insert the bolts (A) or (B) into the holes at the opposite corners of the cabinet, if not placed
upon delivery.
2. Tighten the bolts.
3. Connect the hoisting equipment (C).
Keep the hoisting angle below 60⁰.
4. Move the Power Cabinet to the foundation.

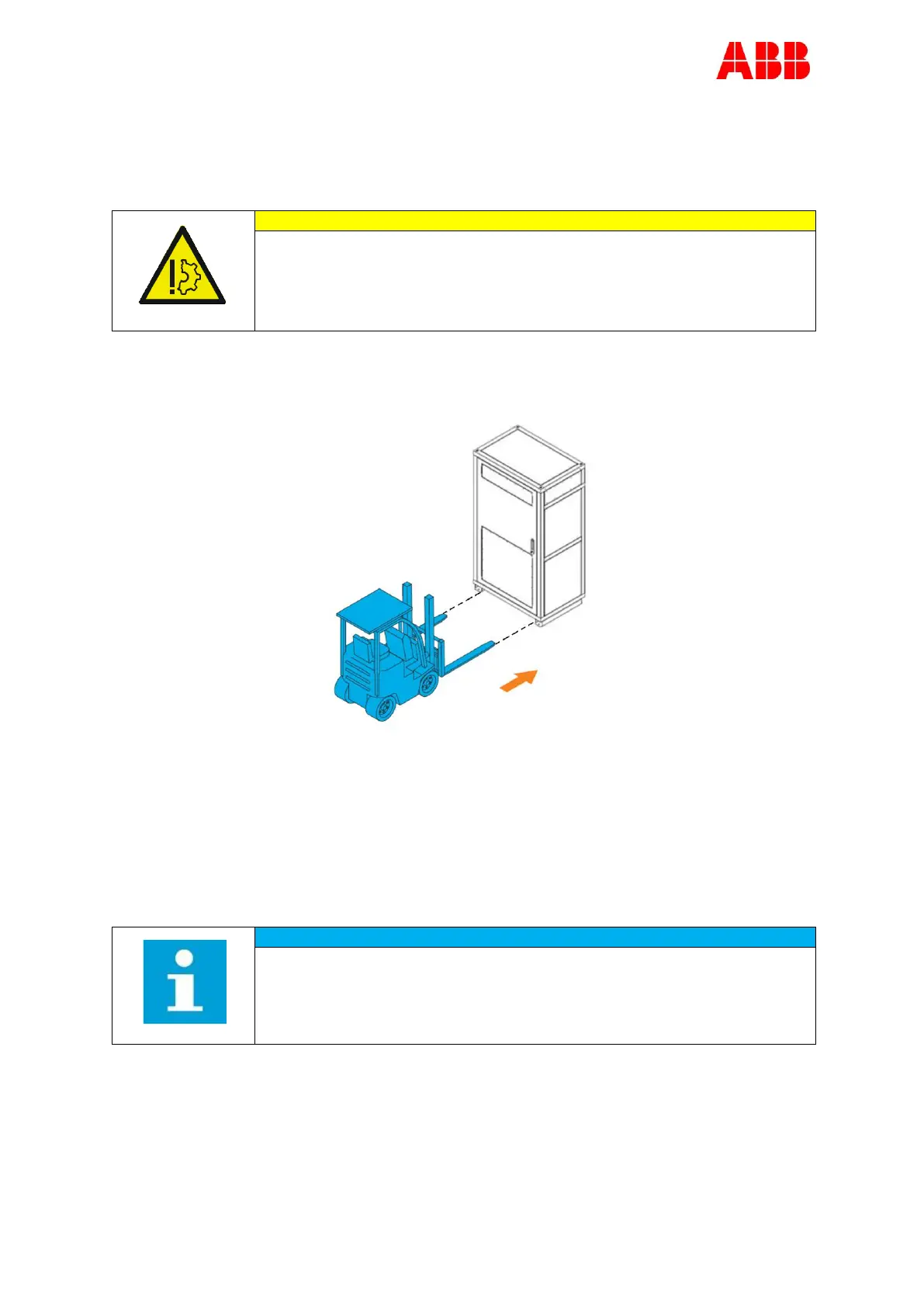

5.4.2. Move cabinet with a forklift truck
Preconditions:
A minimum of two persons is required: one person to operate the forklift truck, the other
person to guide the Power Cabinet to its location.
1. Place wooden slats with a thickness of about 0.39 to 0.59 Inch and a width equal to the
width of the fork of the forklift truck on both forks.
2. Move the forks of the forklift truck next the gaps at the rear of the Power Cabinet.
3. Move the Power Cabinet to the foundation.
The use of the fork slides is mandatory. The distance between the outer
side of the forks need to be 36.61 Inch, lifting the cabinet outside the fork
slides is NOT allowed and will damage the cabinet.
