HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 66 of 128
5.6.3. Connect the AC power cable
Preconditions:
Tools: wire cutter, wire stripper pliers, spanner (size 19), torque wrench (size 19).
Make sure that the main switch of the power supply group for the product
is set to the OFF position. Do a voltage check to make sure that the
electrical power is disconnected from the system.

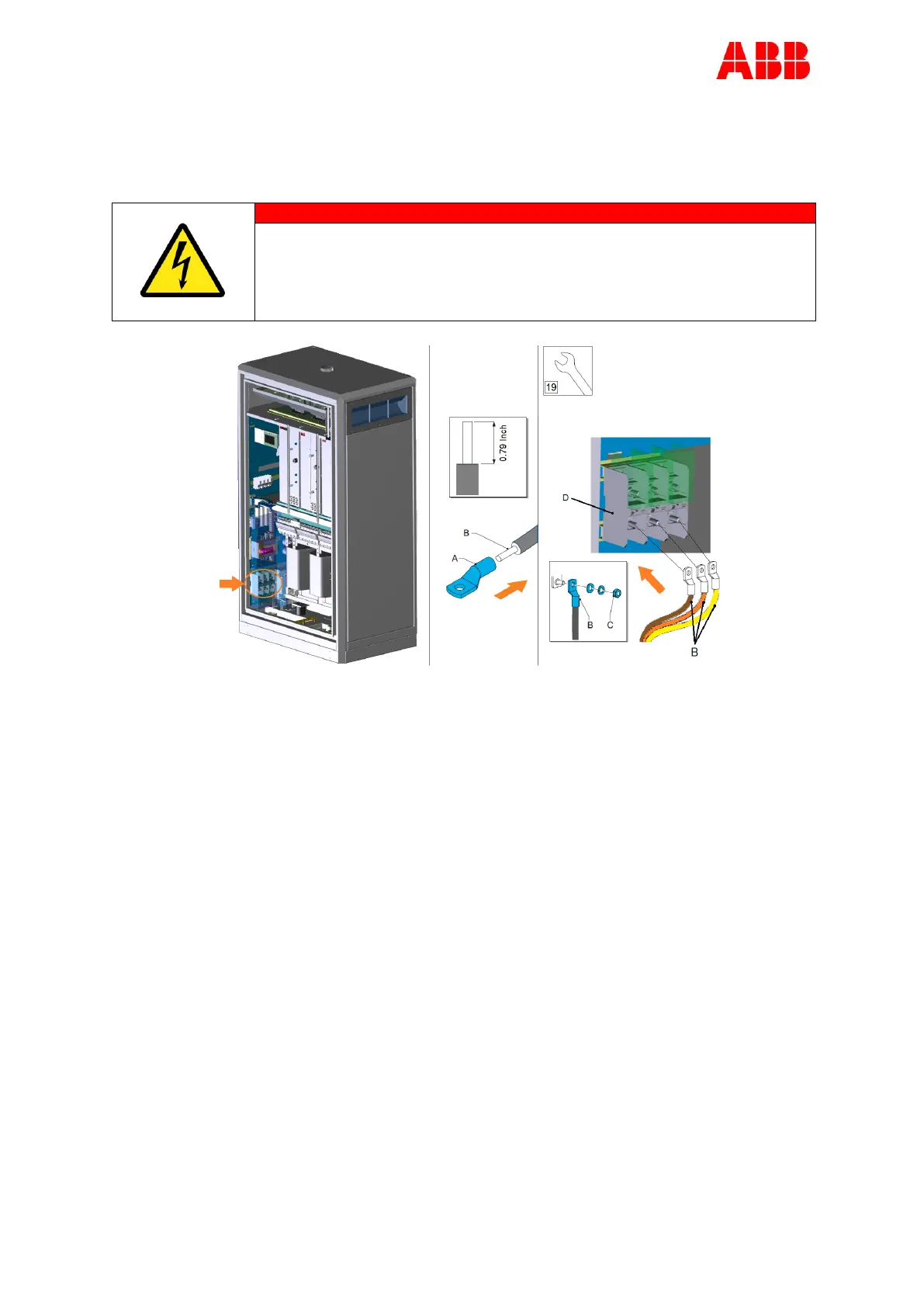

1. Cut the wires of the AC power cable to the correct lengths to reach the connectors. Do
not make the wire routing too tight, or too loose.
2. Strip 0.79 Inch of the insulation from the ends of the wires (B).
3. Attach wire end rings (A) at the end of the wires.
4. Remove the nuts and washers (C) from the bolts (M12) of connector block (D).
5. Insert the 3 wires (B) with the nuts and washers onto the bolts of connector block (D).
• From left to right:
L1 (brown),
L2 (orange),
L3 (yellow).
6. Tighten the nuts (C) with a tightening torque of 22.13 ft-lb.
