HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 39 of 128
4.2.3. Workflow with metal frame foundation

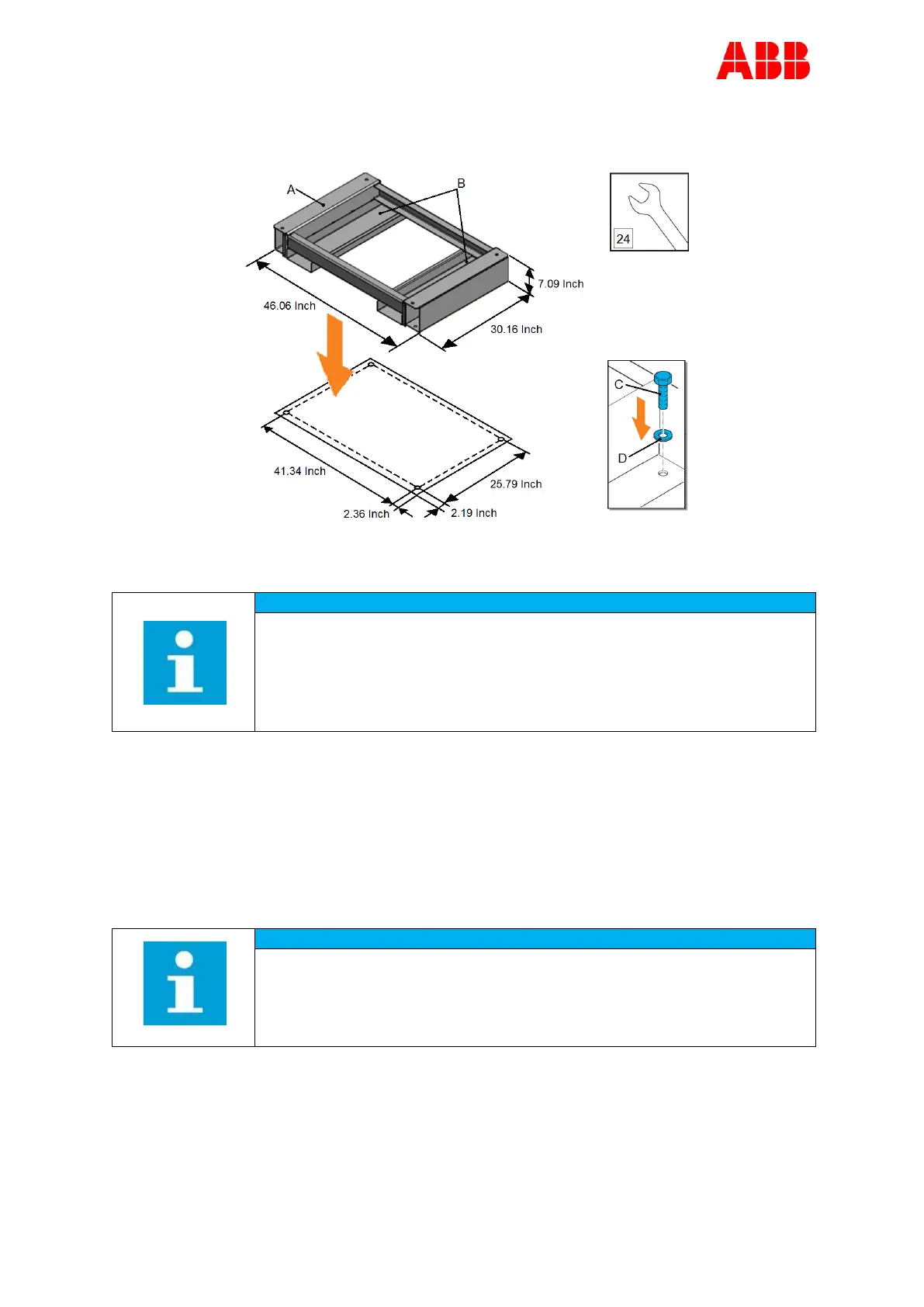

1. Place the frame (A) in the desired position and mark the position of the holes for drilling.
The hole distance of 25.79 Inch on either side of the metal frame
foundation is not equal to the hole distance (26.77 Inch) from the HVC
150(S) cabinet. See also the mechanical drawing in Appendix F
Dimensions Metal Foundation Power Cabinet on page 123.
2. Remove the frame.
3. Drill and tap holes at the marked positions. The holes must be suitable for bolt size M16.
4. Route the cables tray through one of the cable openings (B).
5. Align the frame (A) with the tapped holes.
6. Insert the bolts (C) fitted with the washers (D) into the holes (4x).
7. Tighten the bolts.
8. Route the AC power cable through the left cable opening (B). Make sure that a cable
length of 39.37 Inch is available above the floor for internal routing in the cabinet.
This extra cable length is required to connect the AC power cable with
the connectors in the Power Cabinet without problems.
