HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 21 of 128

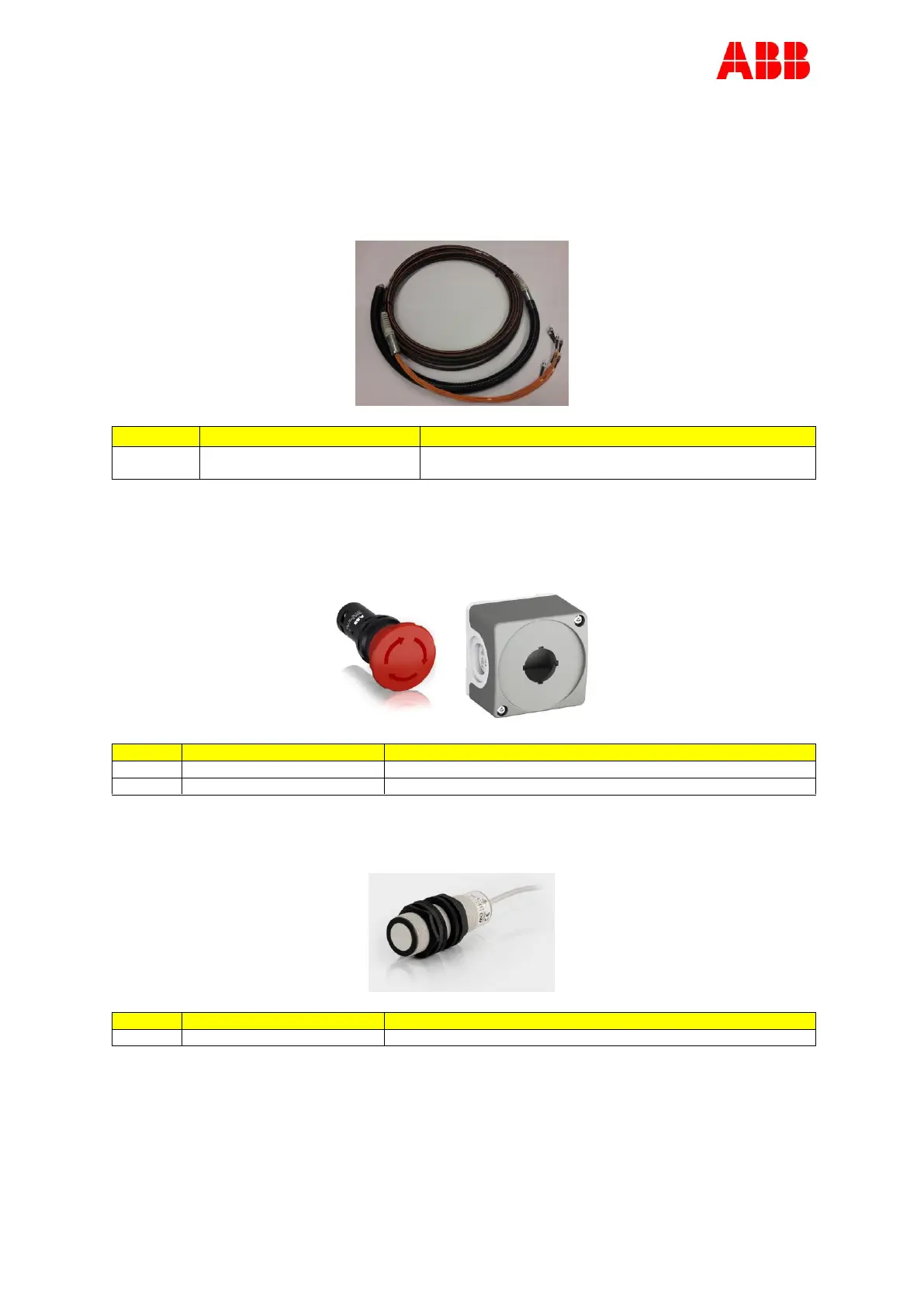

2.2.3. Communication glass fiber cable
The CAN and Ethernet communication between the Power Cabinet and Charge control set
is done via a glass fiber cable. This glass fiber cable must be prefabricated and can be
ordered separately.
Cable length must be defined by the contractor performing installation during site survey.
OM3, PCF or fiberglass (multimode, 850 nm) optic cable with
8 fibers (4 for spare), with B-FCO(ST
®
) connectors
2.2.4. Electrical components
Emergency unit
Integrated in the pole, but need to be ordered separately if ordered without pole.
CE4T-10R-02 Emergency stop button
Distance sensor
Integrated in the pole, but need to be ordered separately if ordered without pole.
Ultrasonic Sensor (Welotec)
RFID unit
Needed when multiple Charge control sets are installed close to each other.
