HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 19 of 128

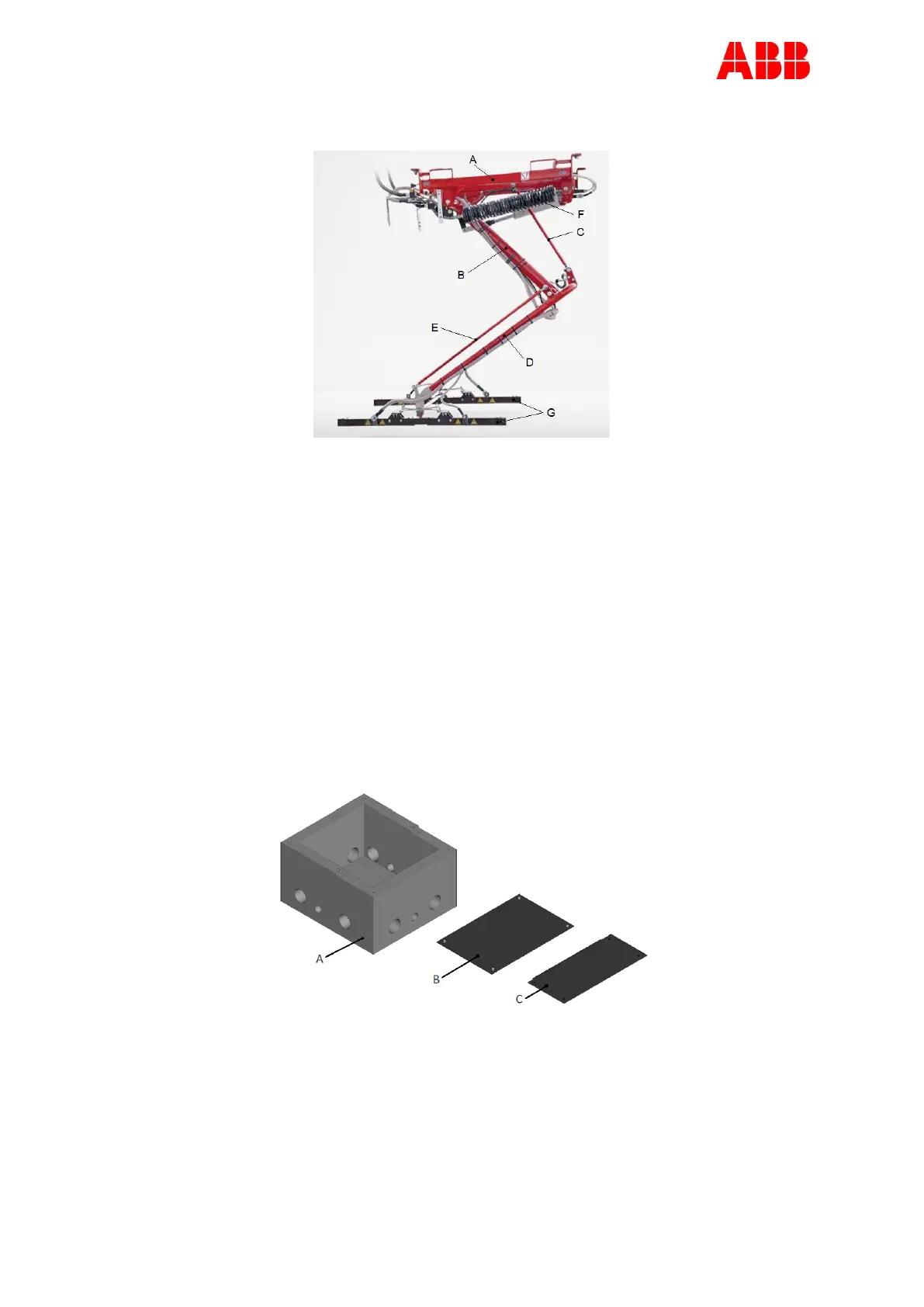

View of the pantograph
A Base frame
B Lower arm
C Lower guide rod
D Upper arm
E Collector head guidance
F Tension spring
G Collector head
2.2. Accessories
The following parts can be ordered at the time of the initial order or afterwards. Contact ABB
Sales department (see Contact information on Page 13 for contact details).
2.2.1. Foundation for Power Cabinet
Pre-fabricated concrete foundation
The pre-fabricated concrete foundation can be used to install the Power Cabinet on soil.
A Foundation
B Top cover plate
C Front cover plate
