HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 54 of 128

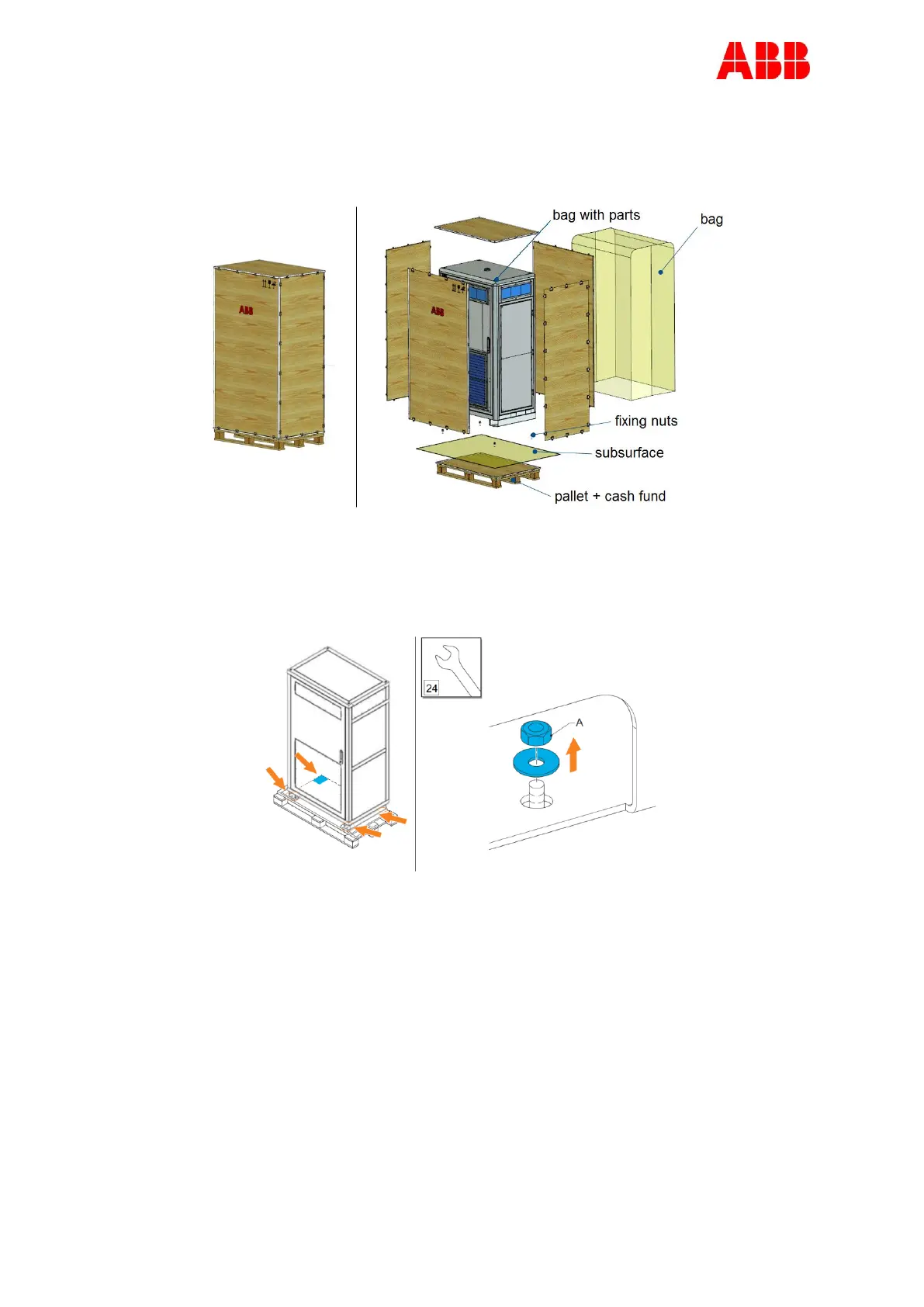

5.3.2. Remove packaging
Preconditions
Tools: spanner (size 24).
1. Remove the packaging material from the Power Cabinet.
2. Remove the bag which contain the keys, cover caps and mounting material that are
attached with tape on one of the lifting eyebolt at the top of the cabinet.
3. Keep this bag with parts in a safe place.
4. Remove the nuts (A) at the four corners.
5.4. Move Power Cabinet to position
There are two options to move the Power Cabinet from the delivery truck to the location.
Use a hoist to lift the cabinet from the top. See Move cabinet with a hoist on Page 55.
Use a forklift truck to lift the cabinet from the bottom. See Move cabinet with a forklift
truck on Page 56.
Preconditions:
All packaging material is removed from the Power Cabinet.
The two cover plates are removed from the foundation.
The tapped holes of the foundation are free from dust. If necessary, clean the holes
with a vacuum cleaner. Use a thread tap to make sure that the bolts will go in smoothly.
