3. Insert the M12 bolts (C) into the holes (4x).
4. Tighten the bolts.
5.6. Connect AC power cable and GND wires Power Cabinets
5.6.1. Remove the protection covers
Preconditions:
 Tools: cross-head screwdriver

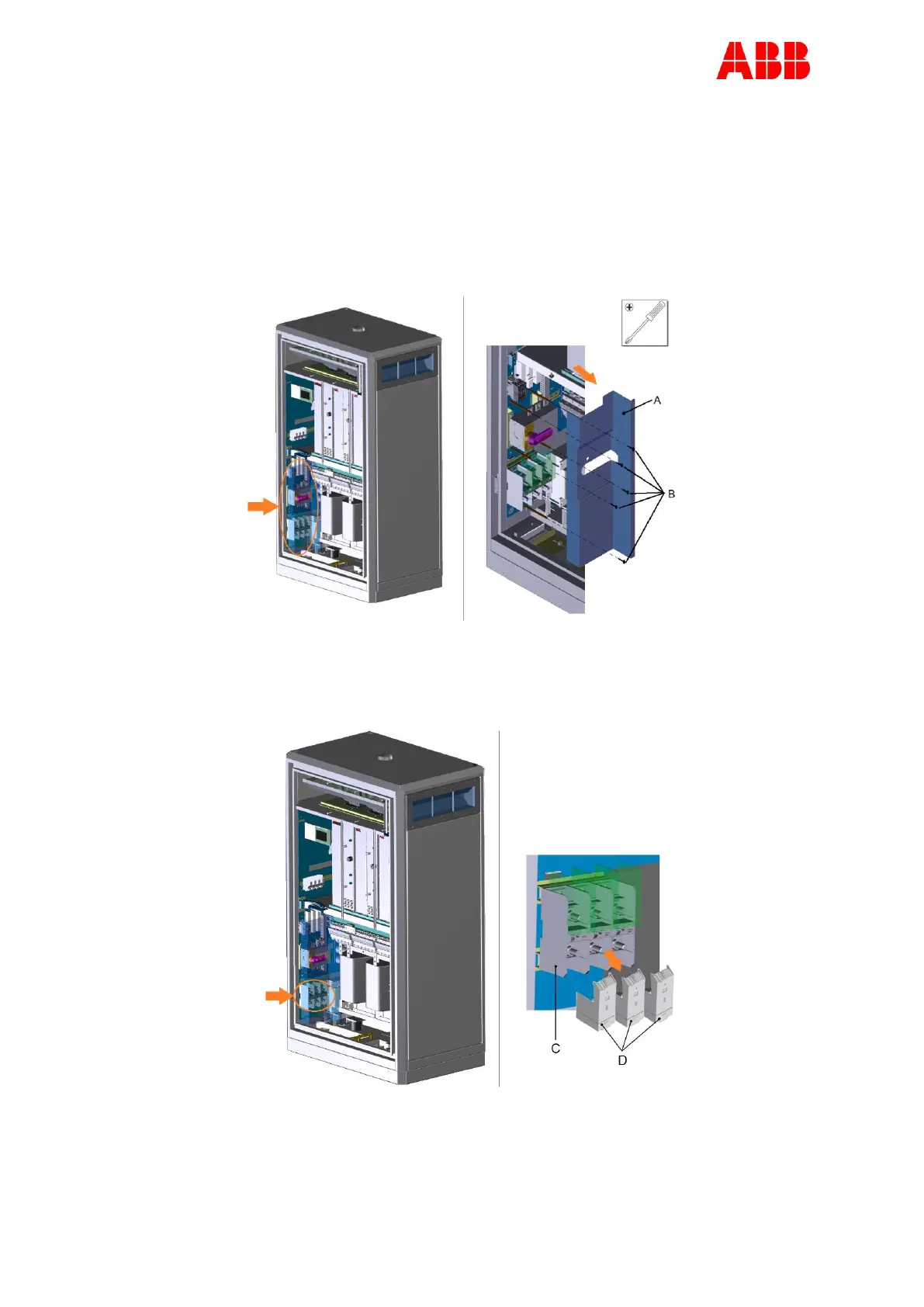

1. Remove the protection plate (A) by loosening the screws (B).
2. Put the protection plate and screws in a safe location as it will be installed again later
on.
3. Remove the 3 protection covers (D) from the connector blocks (C).
4. Put the protection covers in a safe location as it will be installed again later on.
