HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 27 of 128

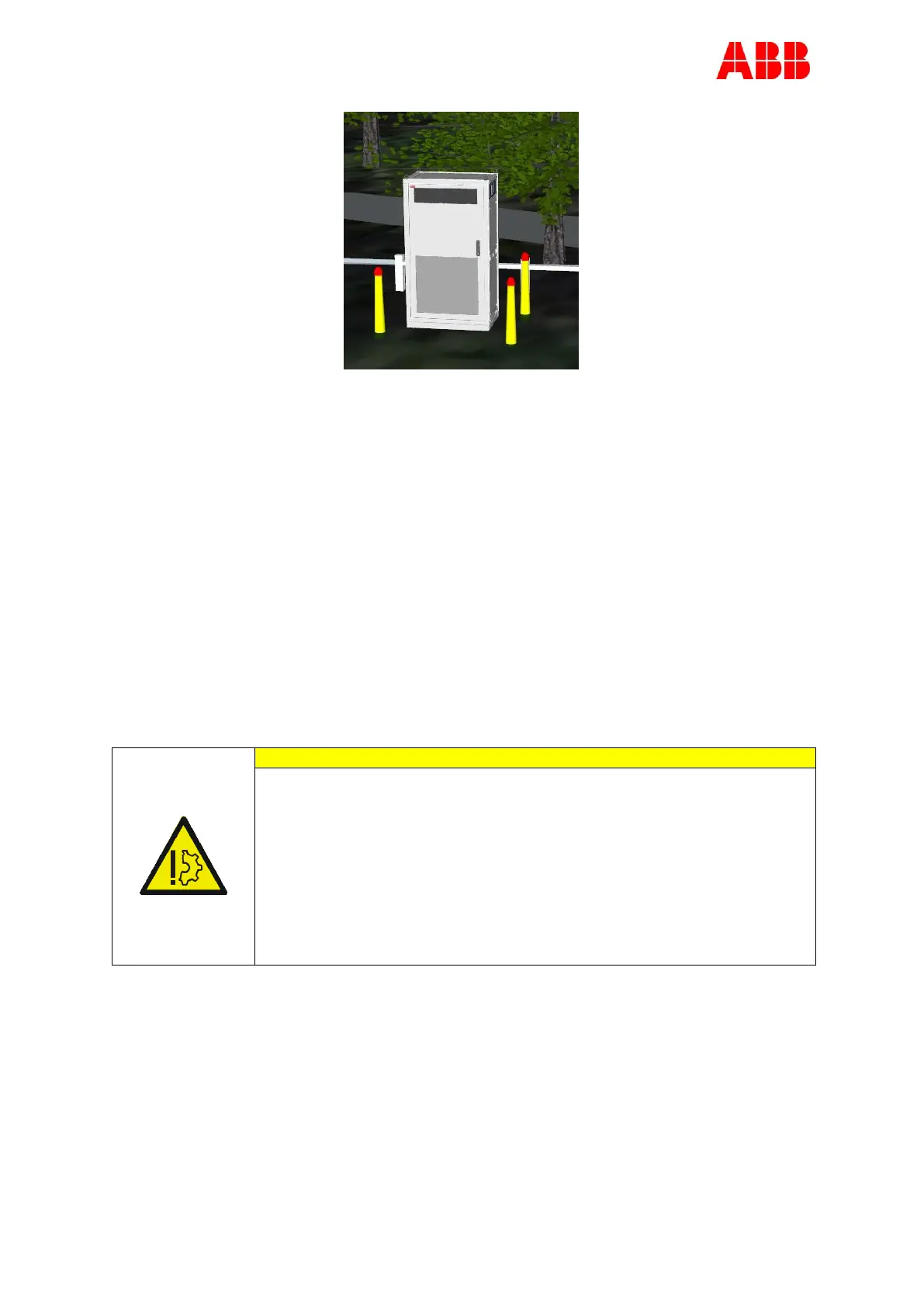

3.5. Geometry of infrastructure
3.5.1. Required space for the Power Cabinet
A single HVC 150 (or HVC 150S) Power Cabinet requires a minimum space of 46.06 x 81.50
Inch (W x D) or 53.94 x 77.56 Inch (W x D). This space is calculated as follows:
A cabinet footprint of 46.06 x 30.32 Inch.
The following free space around the cabinet:
3.94 Inch at the rear side or 0 Inch at the rear side when both left and right side
have a minimum free space of 3.94 Inch.
3.94 Inch or 0 Inch at the left side, if another Power Cabinet is placed next to
it.
3.94 Inch or 0 Inch at the right side, if another Power Cabinet is placed next to
it.
47.24 Inch at the front side in order to open the front door. If the cabinet is
placed inside a room, consider extra free space in front of the open door
(escape way for service people).
The cabinet needs at least the opening area of the front and rear side
with a minimum free distance of 3.94 Inch. This means that cabinets
can stand in a row with one or both side entries blocked (distance on
left/right side is 0 Inch).
It is also possible that the cabinet can stand back to back (distance on
the rear side is 0 Inch). In this case both side entries must have a
minimum free distance of 3.94 Inch. If this is not the case, then the air
supply is not sufficient.
