HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 32 of 128
3.6.3. Maximum slope of the road in sideways direction
The maximum slope of the road sideways direction is 3.5⁰, including the kneeling of the bus.
This will shift the top of the bus 7.87 Inch relative to the center of the bus. So the displacement
caused by the road angle should be taken into account calculating the maximum and minimum
distance between the pole and the street curb.
3.6.4. Maximum slope of the road in driving direction

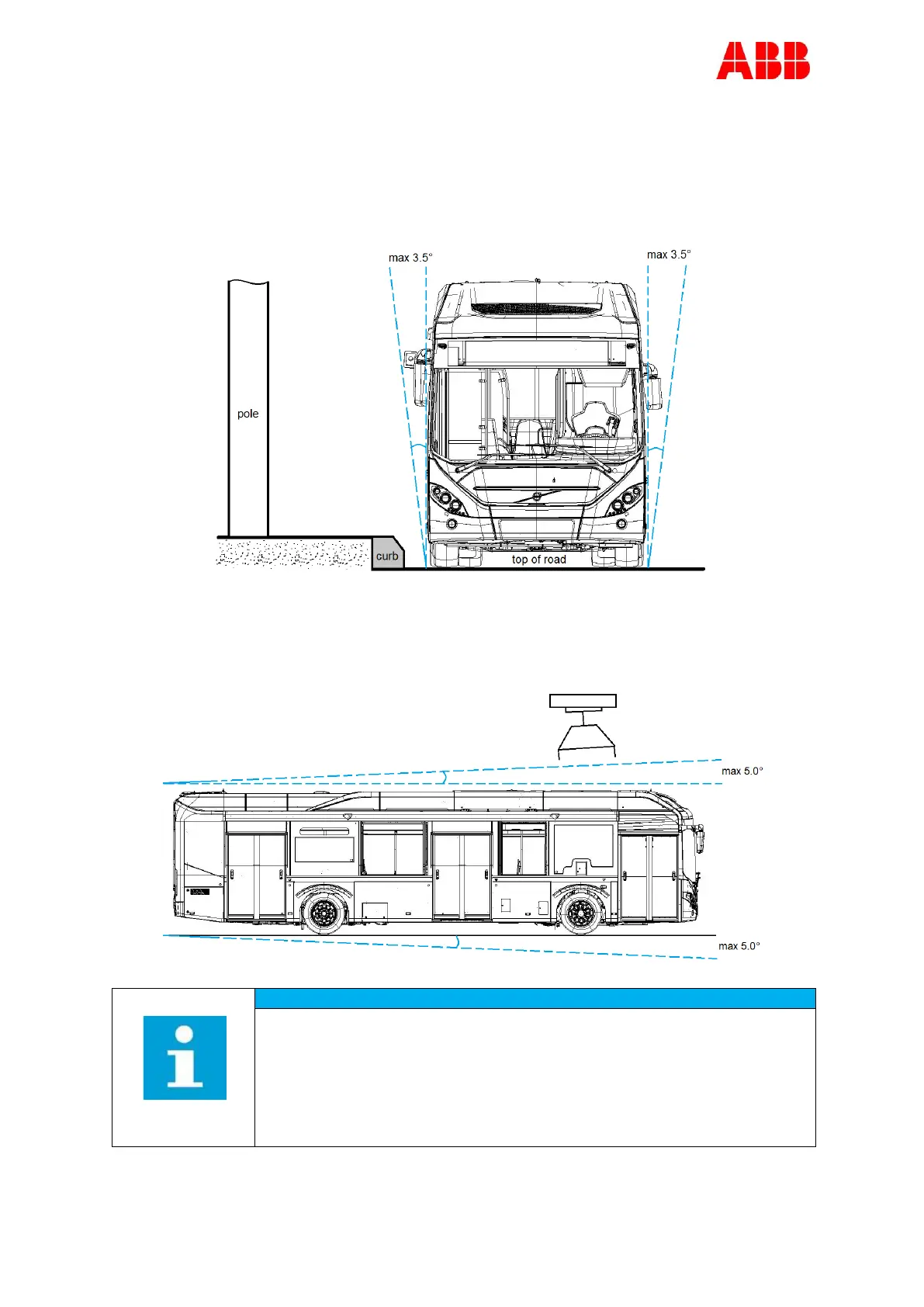

In drive direction of the bus the lower plain of the contact strips should be parallel to the road.
See picture below.
The road inclination should be known before the pole can be built. This
must be communicated with ABB before ordering the ABB pole. This will
also be noted by ABB during the site survey for the placement of the pole.
Contact ABB Sales department (see Contact information on Page 13 for
contact details).
