HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 31 of 128
The pole can be placed on the left side or on the right side (driver side)
of the bus. This must be communicated with ABB before ordering the
ABB pole. This will also be noted by ABB during the site survey for the
placement of the pole. Contact ABB Sales department (see Contact
information on Page 13 for contact details).

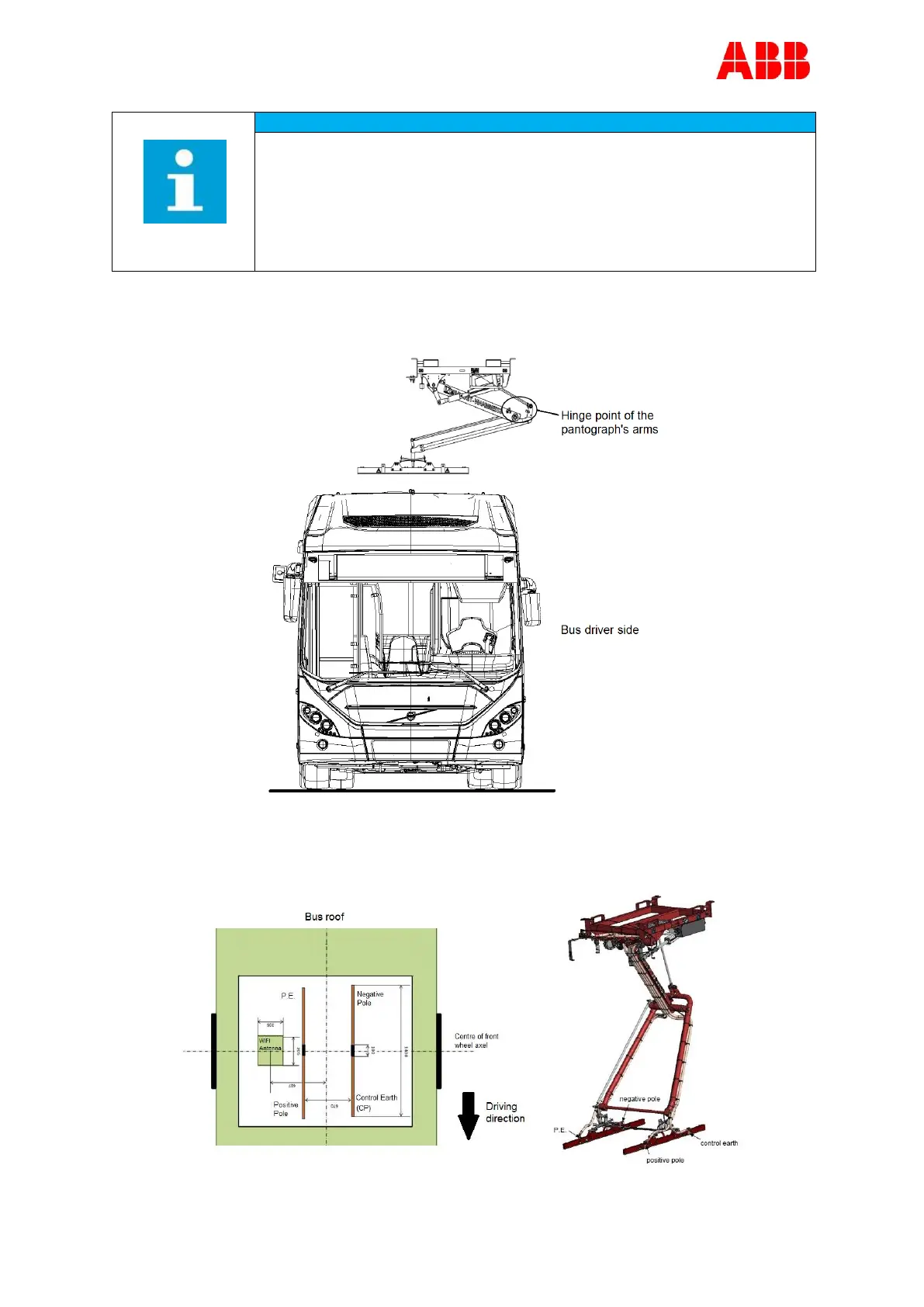

The hinge point of the pantograph’s arms is always located on the same side as the bus driver,
shown in the figure that follows:
In this case the pantograph’s contact rails make the right electrical contact with the contact
rails on the roof of the bus, see picture below.
