HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 108 of 128
5.19. Grouting of the pole construction
Preconditions:
All construction work on the pole is completed.
The Side Acceptance test (SAT) is completed.
Tools: non-shrink pour mortar (recommended Maxit EXM721), mixing tool, bucket or
caster.
For full support of the pole, the space between the foot print of the vertical frame and the
concrete foundation has to be filled with non-shrink grout.

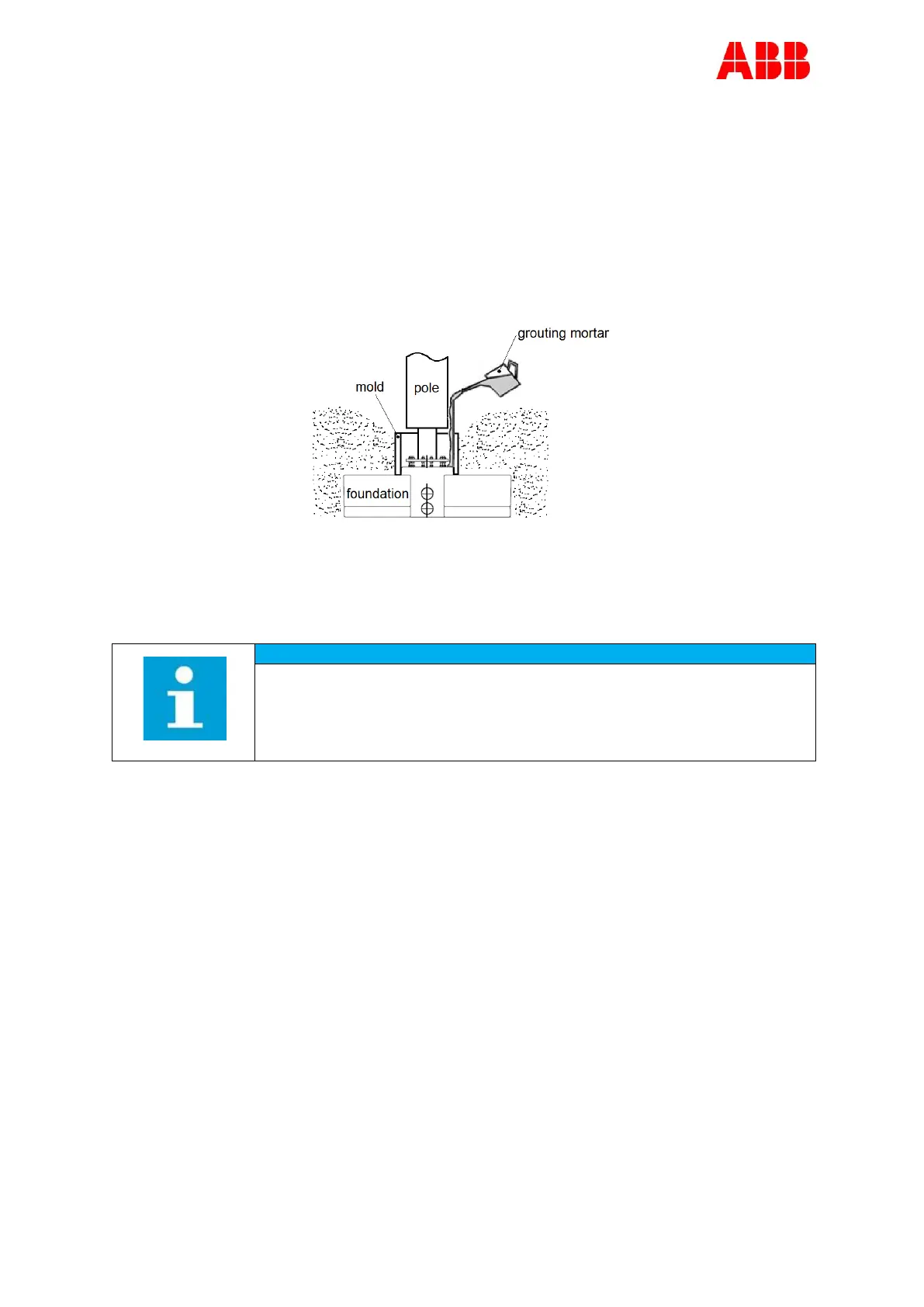

1. Place a mold around the foot print of the vertical frame. The border collar suggested in
Workflow with pre-fabricated concrete foundation on Page 42 can be used as mold. Make
sure the mold is sealed watertight.
2. Prepare the grouting mortar.
Read and follow the instruction manual of the used grouting mortar.
3. Pour the mortar in the mold around the foot print of the vertical frame.
4. Fill the space with mortar up to the upper edge of the foot print of the vertical frame.
5. Allow the mortar to cure before filling up the gap around the pole with sand.
