HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 107 of 128

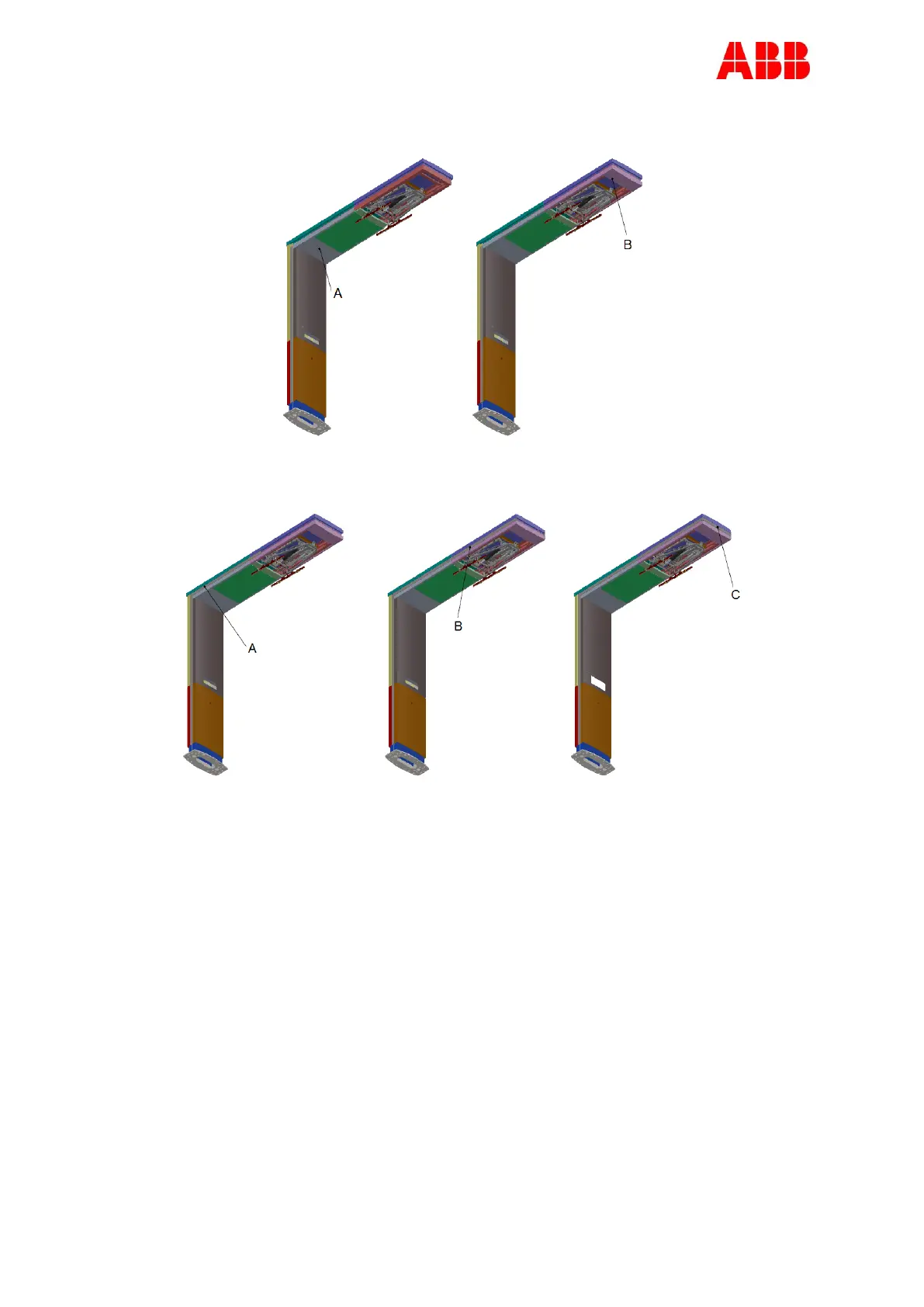

11. Mount cover (A) under the horizontal frame. Pull them as far as possible to the front.
12. Repeat step 4, 5 and 6 for the top back under cover (A) and the top front under cover (B).
13. Mount on both side on the horizontal frame the back side U-profiles (A) and the front side
U-profiles (B), and mount the front U-profile (C).
