HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 106 of 128

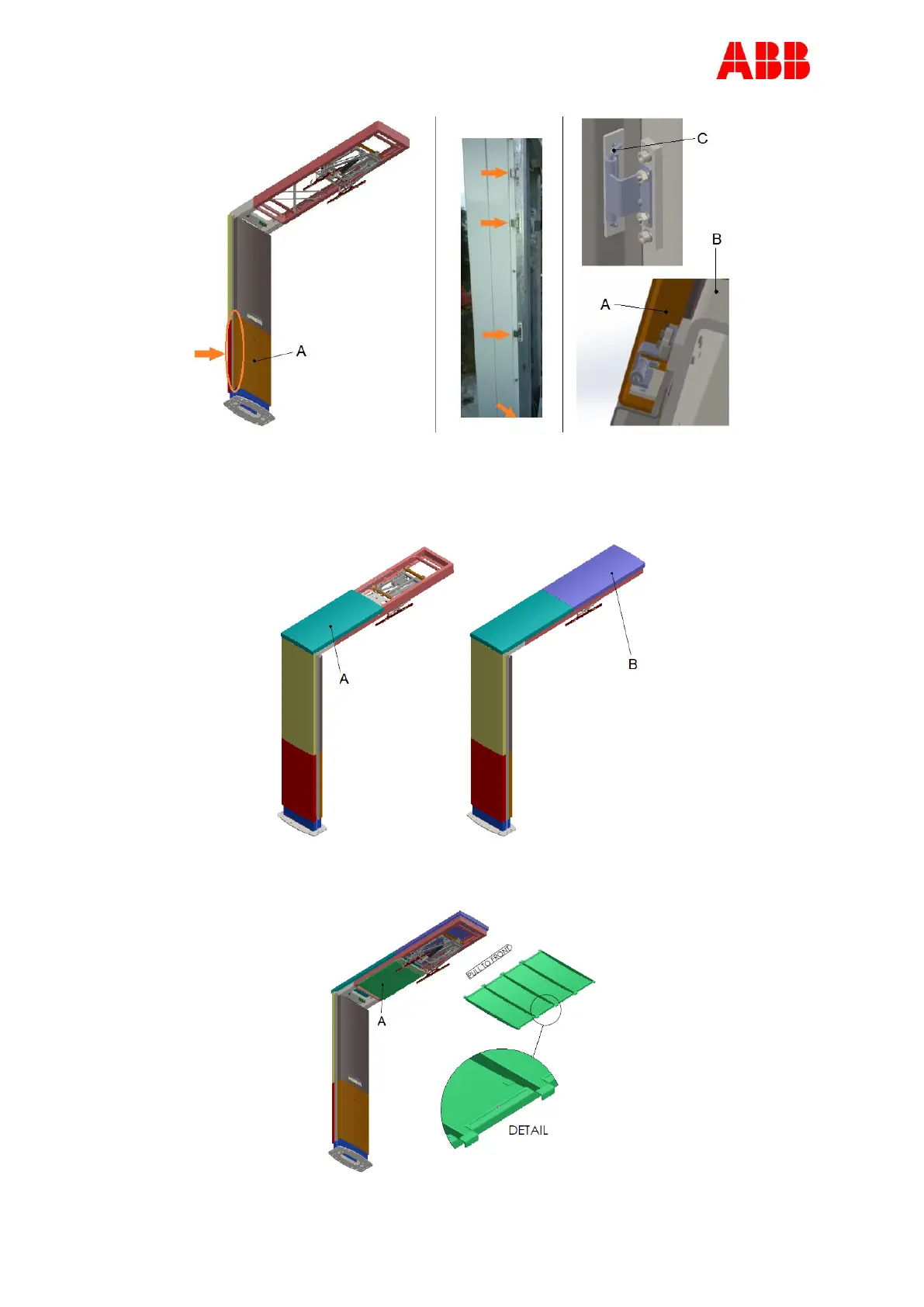

9. Mount the cover door (A) on the four hinges mounted on the left side of the vertical frame
(B). Place the hinge-pins (C) into the hinges to secure the door. Check if the door can be
closed and locked. Adjust the door suspension if necessary.
10. Repeat step 4, 5 and 6 for the top back up cover (A) and the top front up cover (B).
