HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 105 of 128

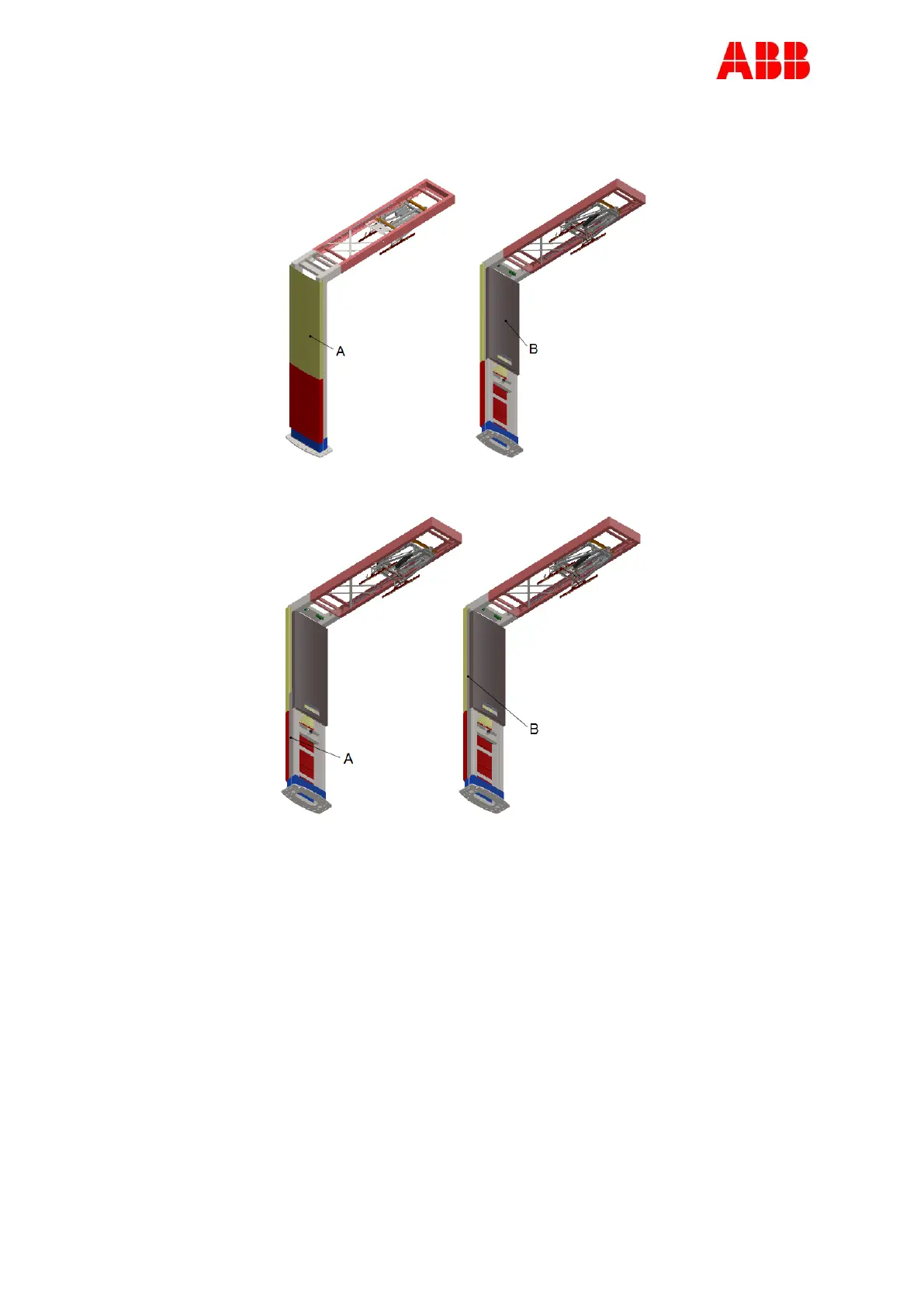

6. Mount the rest of the fasteners (A) in the following order: lock washer M6, flat washer M6
and bolt M6x16 (6x).
7. Repeat step 4, 5 and 6 for the backside up cover (A) and front side up cover (B).
8. Mount on both side on the vertical frame the below U-profiles (A) and then mount on both
side the up U-profiles (B).
