ABB HVC User Manual

HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 79 of 128

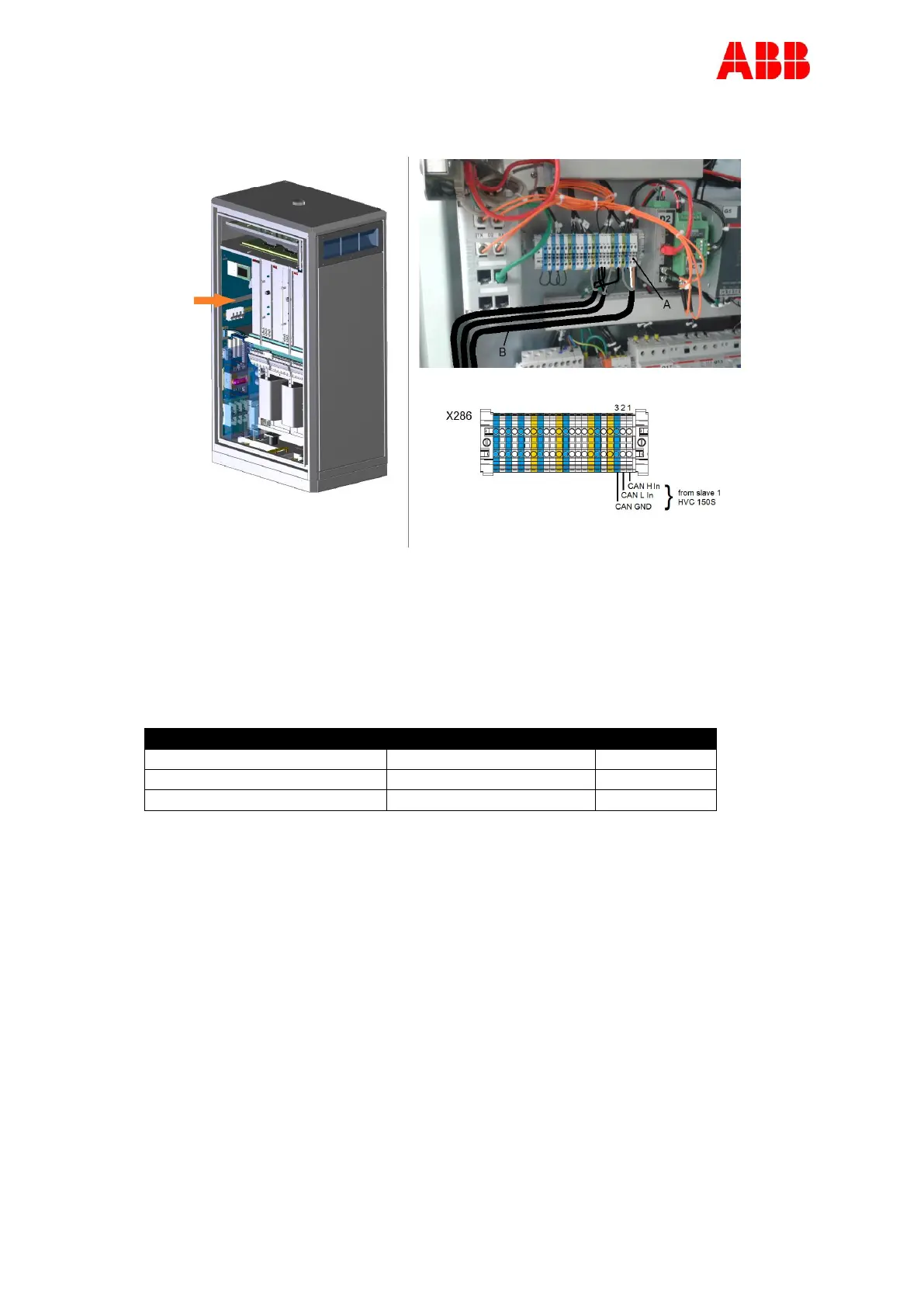

CAN cable connection in master HVC 150:
A Terminal block
B CAN cable from slave 1 HVC 150S
1. Move the cable towards the terminal block (A).
2. Strip 0.43 Inch of the insulation from the ends of the wires.
3. Crimp a ferrule onto the end of the wire.
4. Loosen the connector screws.
5. Insert the wires into the connectors, see table below:
Functional description
Connector
Wire color
CAN H In
X286-1
Brown
CAN L Out
X286-2
White
CAN GND
X286-3 or Shield Can In
Shield
See also Appendix H Signal connection diagram.
6. Tighten the connector screws.
