HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 44 of 128

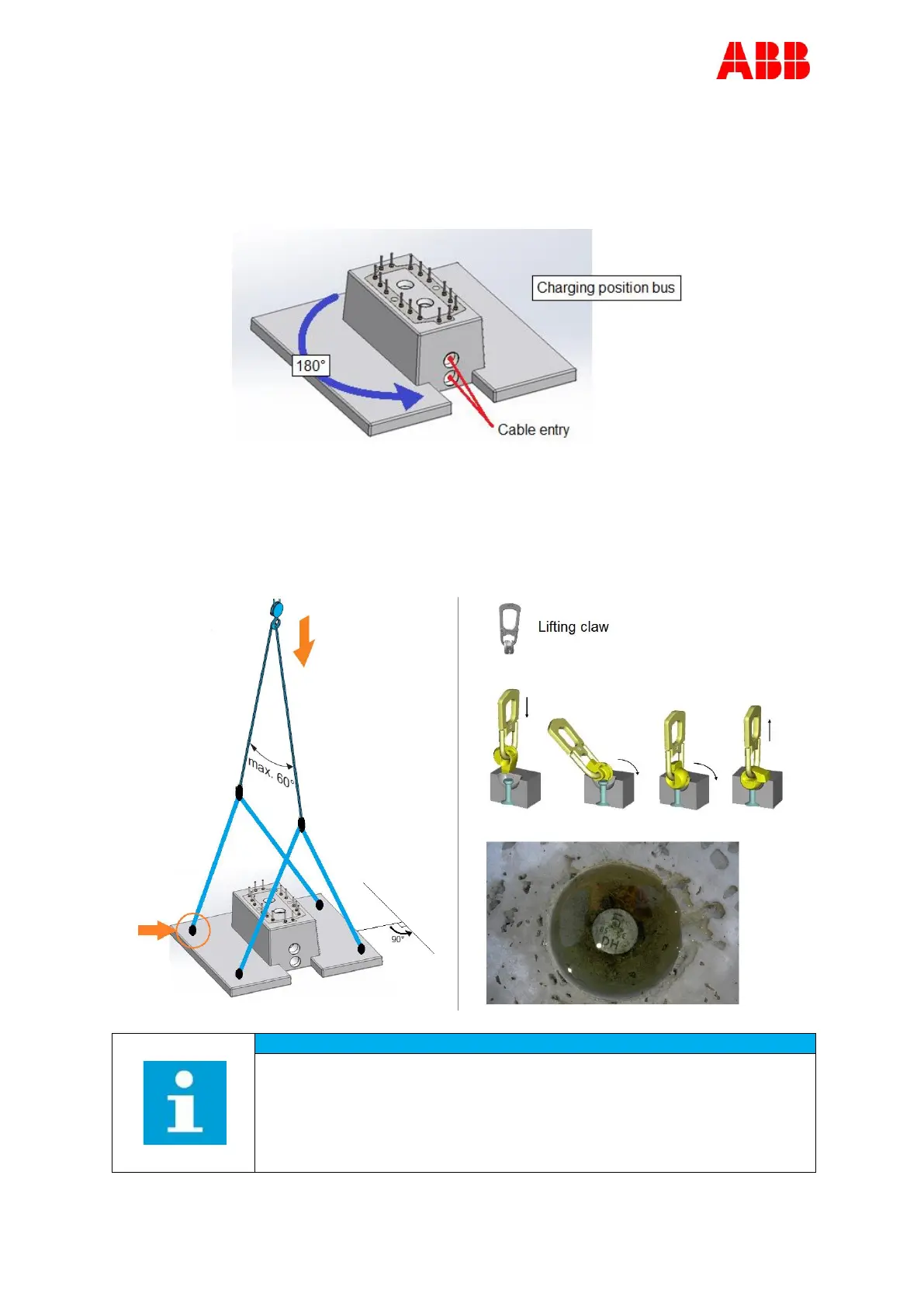

The base plate has holes for entering cables into the charging pole construction which are
positioned aligned with the road. The base plate must be positioned in the right way to have
the cable conduits facing towards the foundation of the Power Cabinet. The base plate can be
installed 180 degrees to face the cable entries to the other side.
With preparation of the soil the concrete base plate can be installed. There are four bullet head
anchors (5 85 DH) pouring in the concrete base plate.
Hoist the base plate with using four lifting claws connected with four slings or chains with
sufficient capacity. The weight of the base plate is 7495.72 lb and the foot print is 94.49 x
94.49 Inch.
Ensure the concrete base plate is exact perpendicular to the road (or
charging position of the bus).
Never hoist on the thread end on top the foundation block, only use the
hoisting points as indicated.
