ABB HVC User Manual

HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 76 of 128

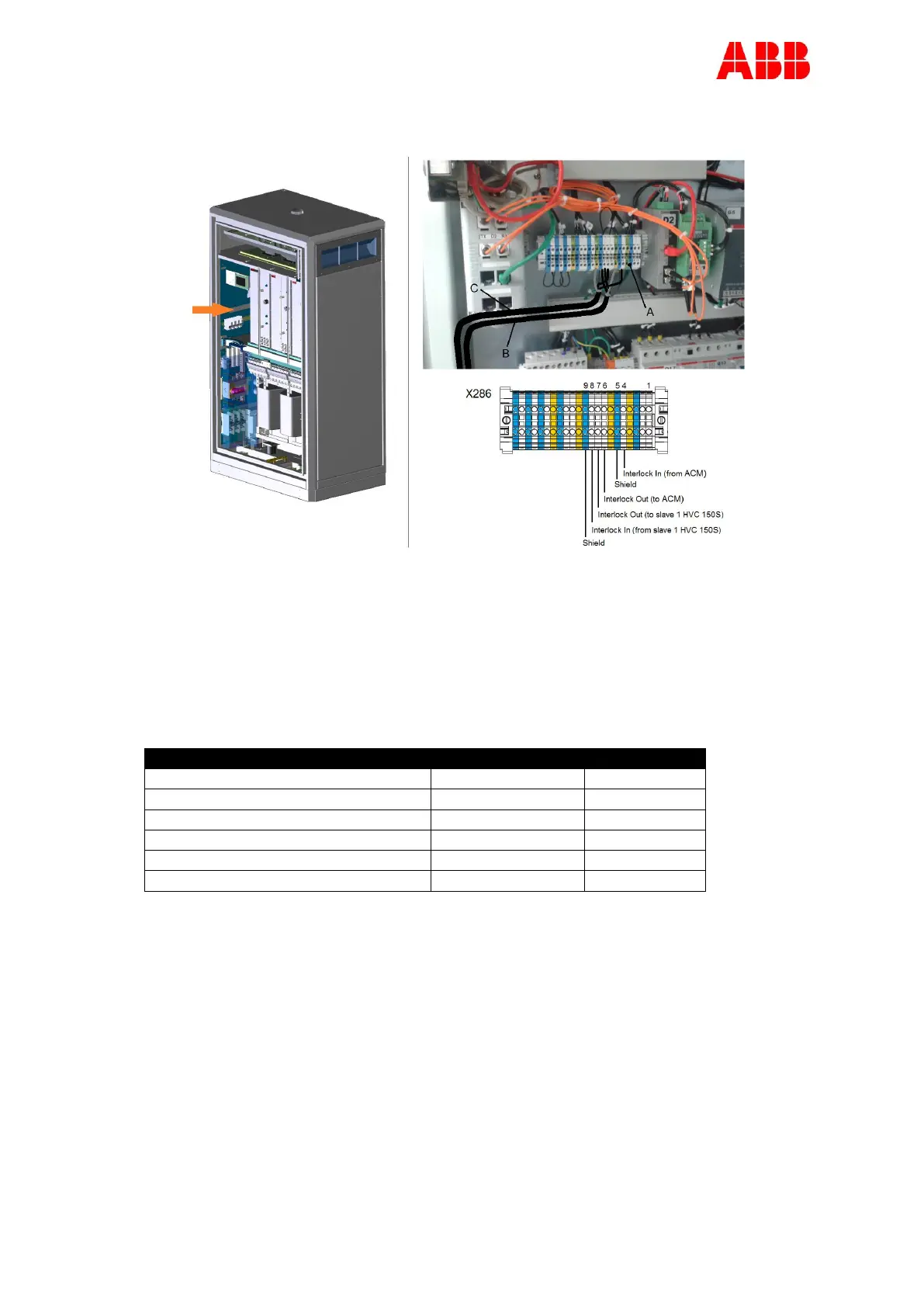

Interlock cable connection in master HVC 150:
A Terminal block
B Interlock cable from/to slave 1 HVC 150S
C Interlock cable from/to ACS Control Module (ACM)
1. Move the cables towards the terminal block (A).
2. Strip 0.43 Inch of the insulation from the ends of the wires.
3. Crimp a ferrule onto the end of the wire.
4. Loosen the connector screws.
5. Insert the wires into the connectors, see table below:
Functional description
Connector
Wire number
Interlock In (ACM)
X286-4
2
Interlock Out (ACM)
X286-6
1
Interlock GND (ACM)
X286-9
Shield
Interlock Out (slave 1 HVC 150S)
X286-7
1
Interlock In (slave 1 HVC 150S)
X286-8
2
Interlock GND (slave 1 HVC 150S)
X286-5
Shield
See also Appendix H Signal connection diagram.
6. Tighten the connector screws.
