HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 87 of 128

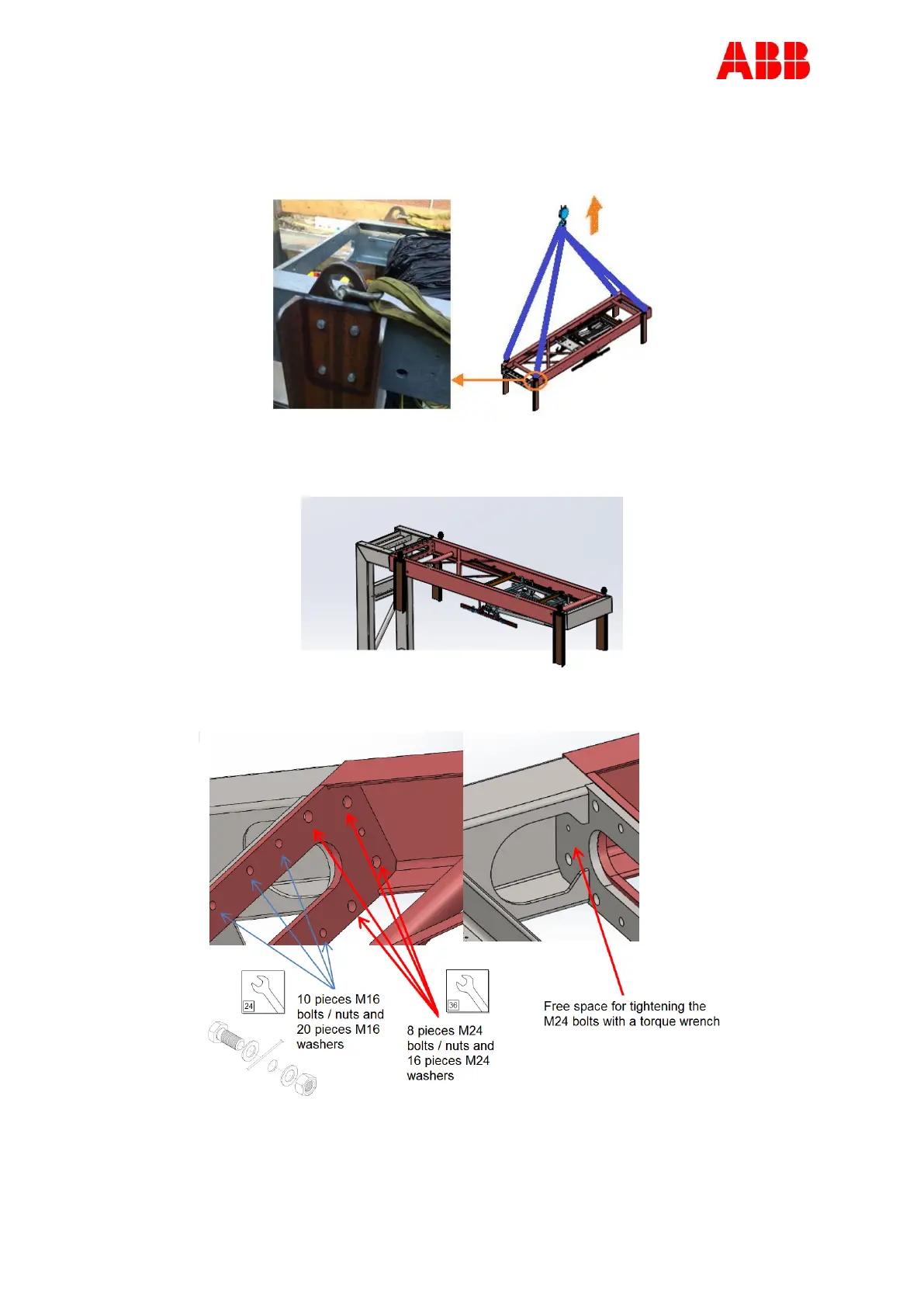

A Vertical frame
B Horizontal frame
1. Lift the horizontal frame up to the connection point on the vertical frame.
2. Carefully position the horizontal frame before the connection point on the vertical frame.
3. Make sure that the horizontal frame is aligned with the tapped holes.
4. Mount the horizontal frame onto the vertical frame.
First make the M24 bolt + washer / washer + nut connection. Use 8 pieces bolts of
M24 x 50 Class 8.8. A torque of 588.57 ft-lb has to be applied.
