HVC 450 kW E-Bus Charger Installation Guide
Revision: 1.2 COMPANY CONFIDENTIAL
Date released: 16-08-2018 Page 96 of 128

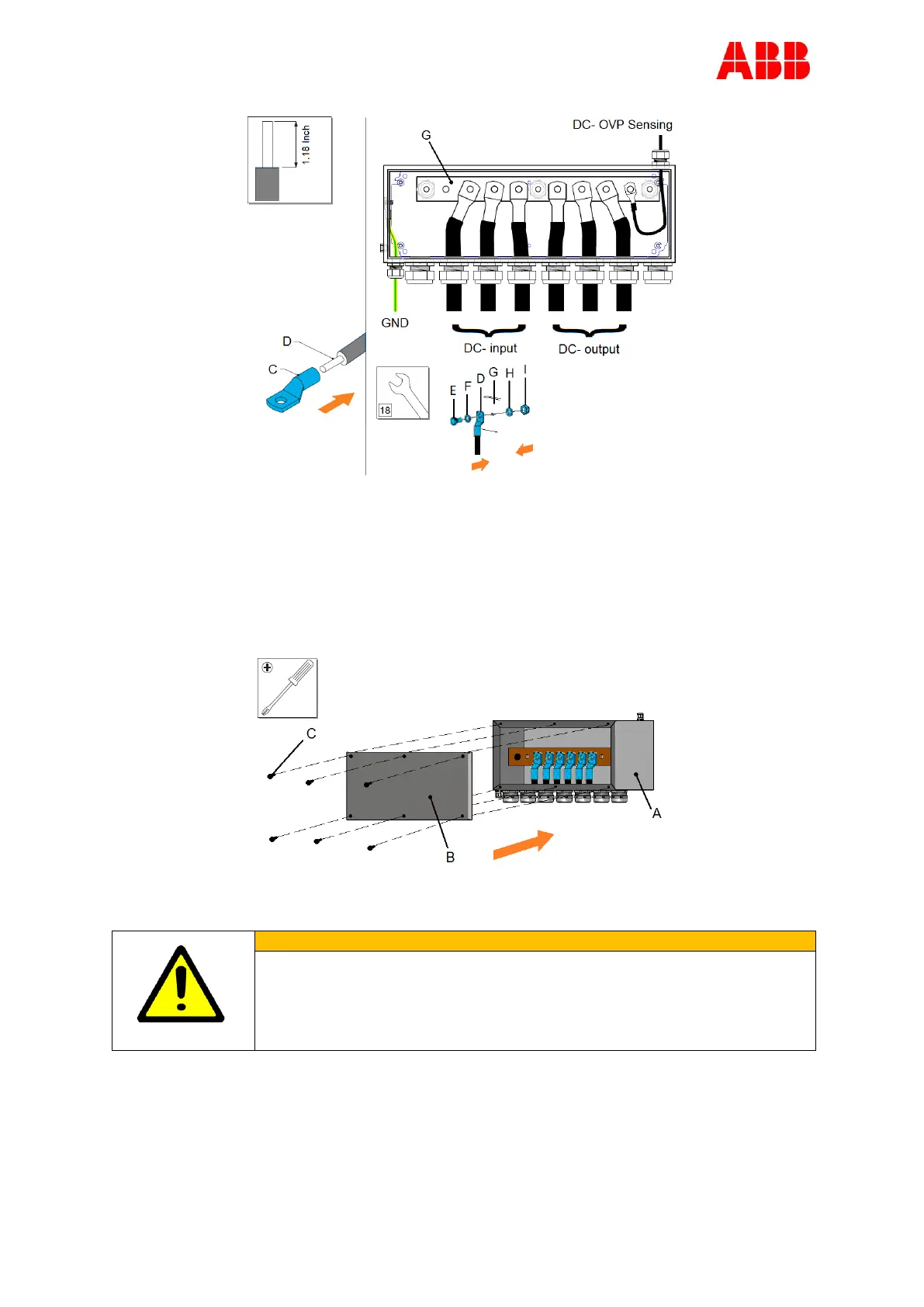

8. Attach cable lug (C) at the end of the wires (D).
9. Remove the M12 bolts, washers and nuts from the bus-bar (G).
10. Fit the bolt (E) with flat washer (F) and the wire (D) (6x).
11. Insert the bolt fitted with the wire into the bus-bar (G) (6x).
12. Secure the bolt (E) onto the bus-bar (G) with the spring washer (H) and the nut (I) (6x).
13. Tighten the bolts (E) and nuts (I) with a tightening torque of 59.01 ft-lb.
14. Tighten the cable gland’s nut to secure the DC power cables.
15. Place the cover (B) back onto the Junction Box (A).
If the GND braided wire between the cover and cabinet is disconnected
during the installation of the DC- power cables, make sure that the GND
braided wire of the cover is electrically connected to the cabinet.
16. Tighten the screws (C) (6x) to secure the Junction Box.
