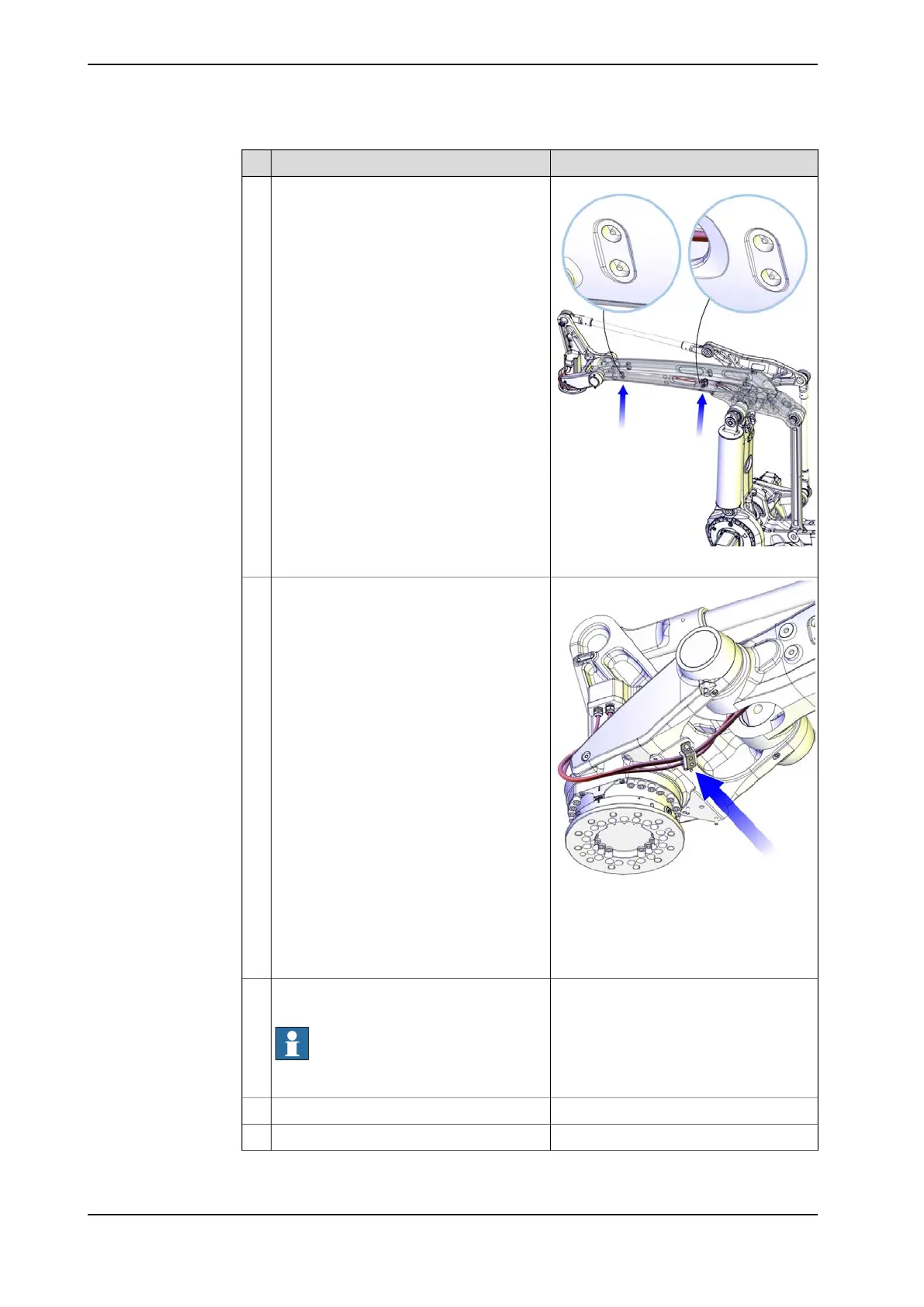

NoteAction
xx1000001338
Refit the cable harness inside the upper arm
by refitting the cable clamps with the nuts
(2 + 2 pcs) from the outside of the upper
arm.
3
xx1000001336
Refit the metal clamp at the tilthouse with
its nuts.
4
Push the axis 6 motor cables carefully
through the cable gland.
Note
Do not twist the cables!
5
Reconnect all connectors in motor axis 6.6
Check the gasket. If damaged, replace it.7
Continues on next page
162 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.3.2 Replacing the cable harness, upper end (incl. axis 6)
Continued
