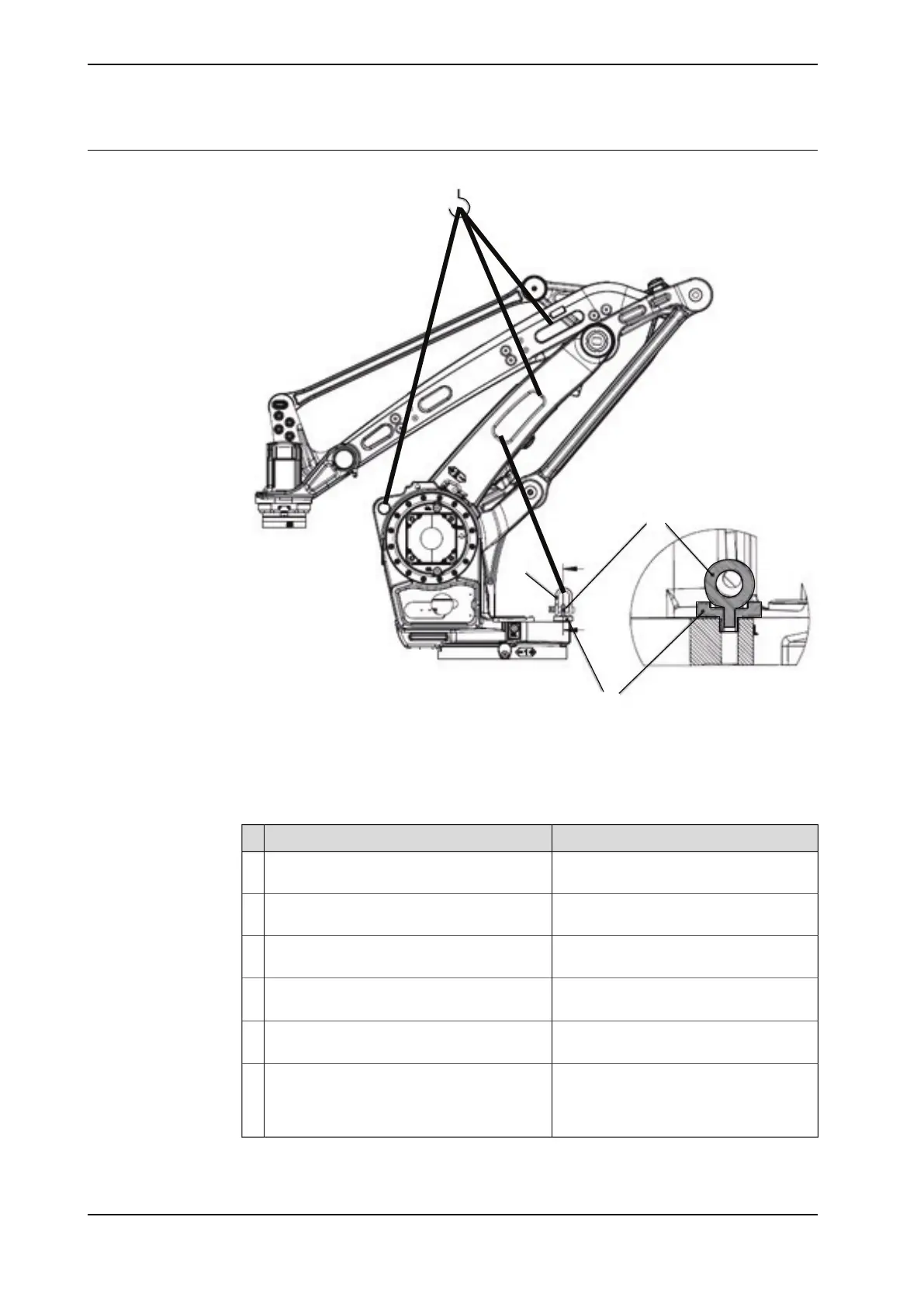

Fitting the lifting accessories to the complete arm system
xx1100000249
A Shackle
B Lifting eye, M12
C Adapter
NoteAction
Fit a roundsling from the frame to the over-
head crane.
1
Fit a roundsling from the lower arm to the
overhead crane.
2
Fit a roundsling from the upper arm to the
overhead crane.
3
Art. no. is specified in Required equip-
ment on page 174.
Fit the adapter to the oil plug hole for filling
oil into axis 1 gearbox.
4
Art. no. is specified in Required equip-
ment on page 174.
Fit a lifting eye and a shackle to the adapter.5
The roundsling will take the load of the
frame during the lift of the arm system,
provided that the brake of axis 2 is re-
leased.
Fit a roundsling between the lower arm and
the shackle.
6
Continues on next page
178 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.3.5 Replacing the base, including axis 1 gearbox
Continued
