NoteAction
xx1100000233

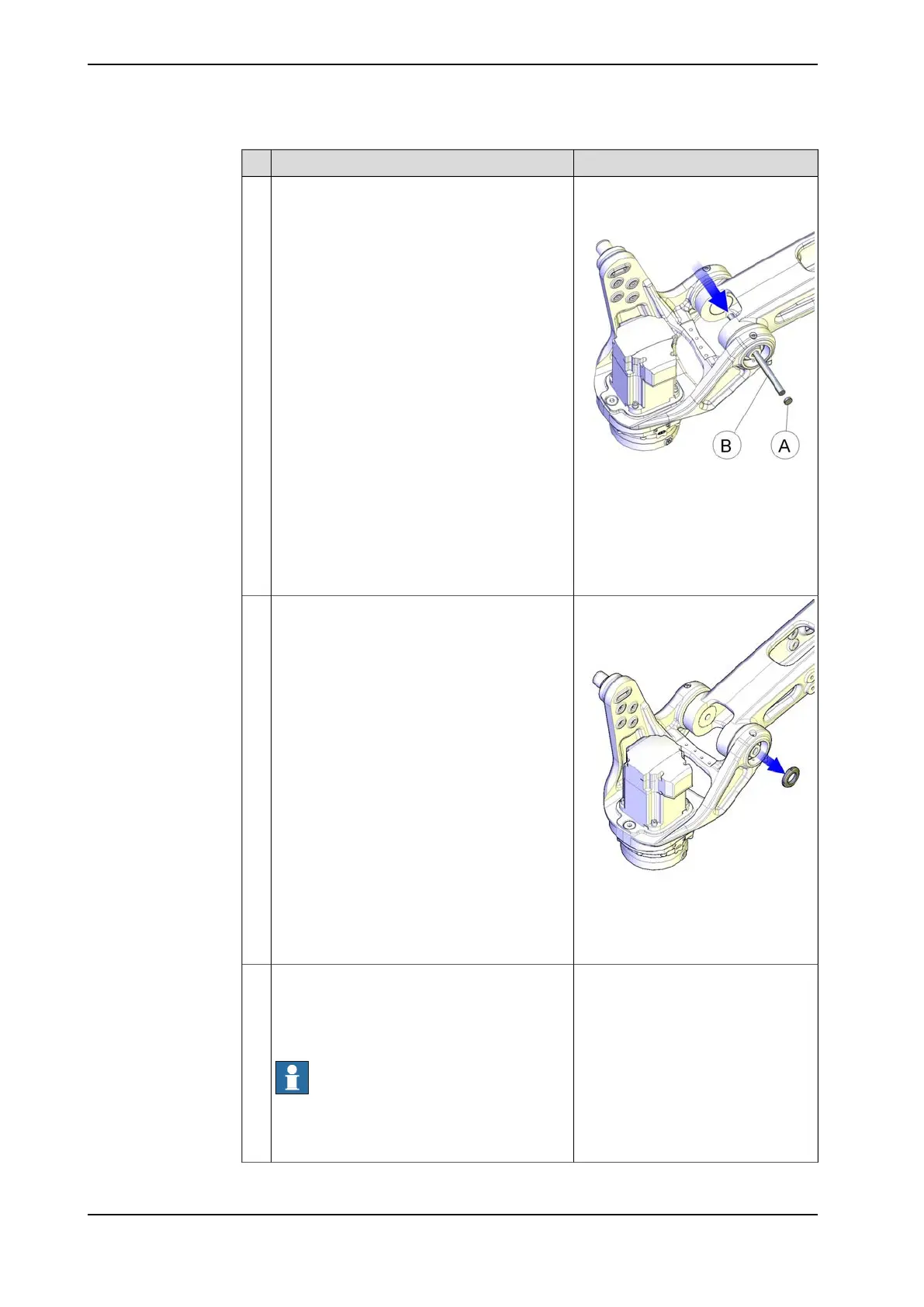

Remove the small VK cover from the inside
with the help of a short punch or similar.
12
Parts:
A: VK cover
B: Punch
xx1100000234
Remove the lock nut.13
For art.no:s. see Required equipment
on page 192.
Apply the press tool shaft and auxiliary bushing
used for removing the shaft, as shown in the
figure in:
• Press tool for removal of shaft on
page 194
Note
A longer threaded bar M16 is needed when re-
moving the shaft than the one specified when
fitting.
14
The longer threaded bar: M16 length
450 mm
Continues on next page
200 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
