NoteAction
xx1100000237

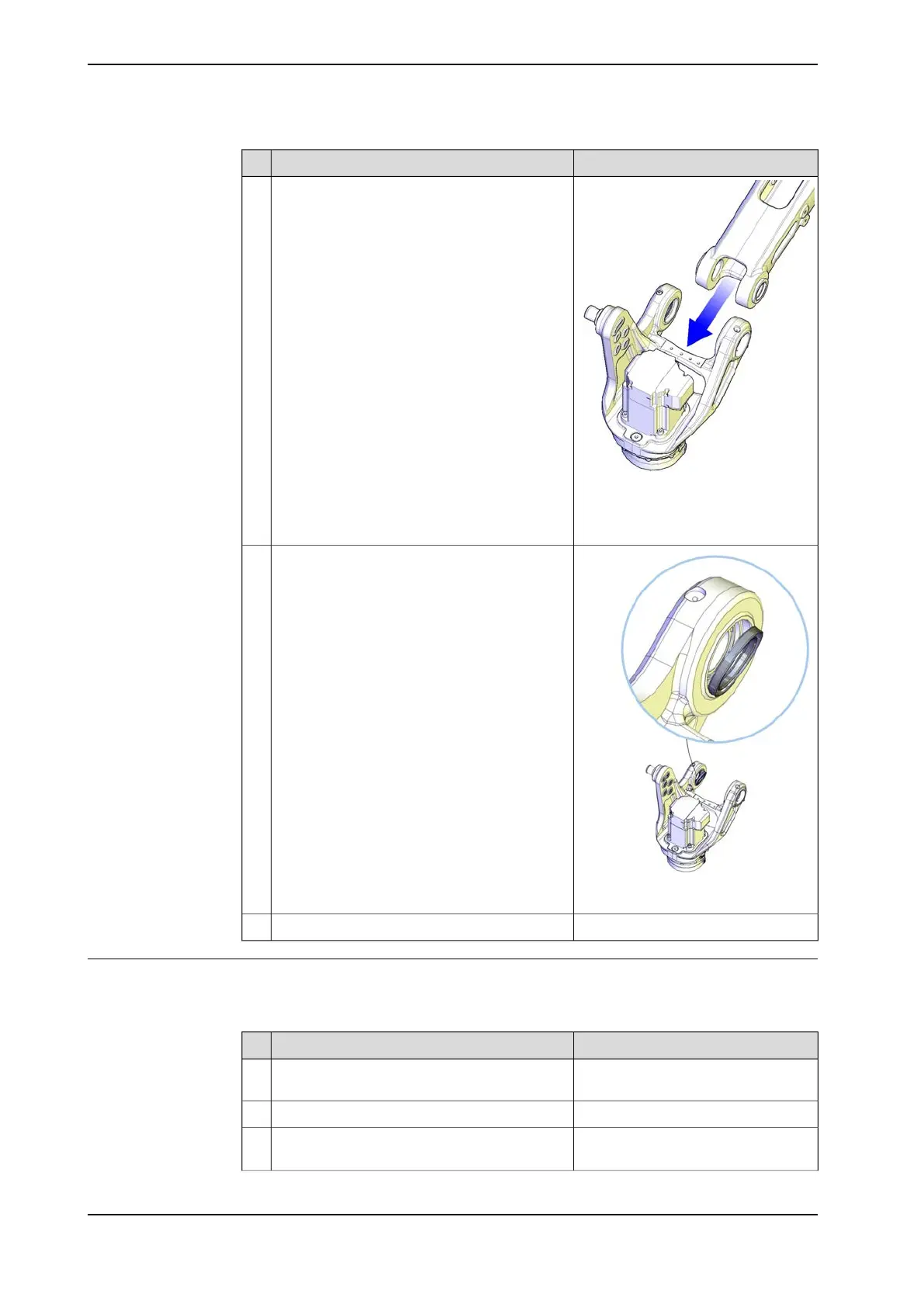

Remove the tilthouse and lift it to a safe place.
Check that bearings are kept clean. Replace if
damaged.
20
xx1100000243
Force away the sealing ring with a screwdriver
or similar.
The sealing ring must be replaced with new
ones when refitting.
21
If needed replace bearings.22
Premounting outer race of bearing and radial sealing, axis 2 side
Use this procedure to fit the outer race of the bearing and radial sealing in the
tilthouse on the axis 2 side, before fitting the tilthouse to the upper arm.
NoteAction
This work is best done on a workbench or sim-
ilar.
1
Fit the radial sealing in the hole.2
Art.no. is specified in Required equip-
ment on page 192.
Apply some grease in the hole for the bearings.3
Continues on next page
202 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
