NoteAction
For art.no. see Required equipment
on page 192.
A
B
xx1100000244

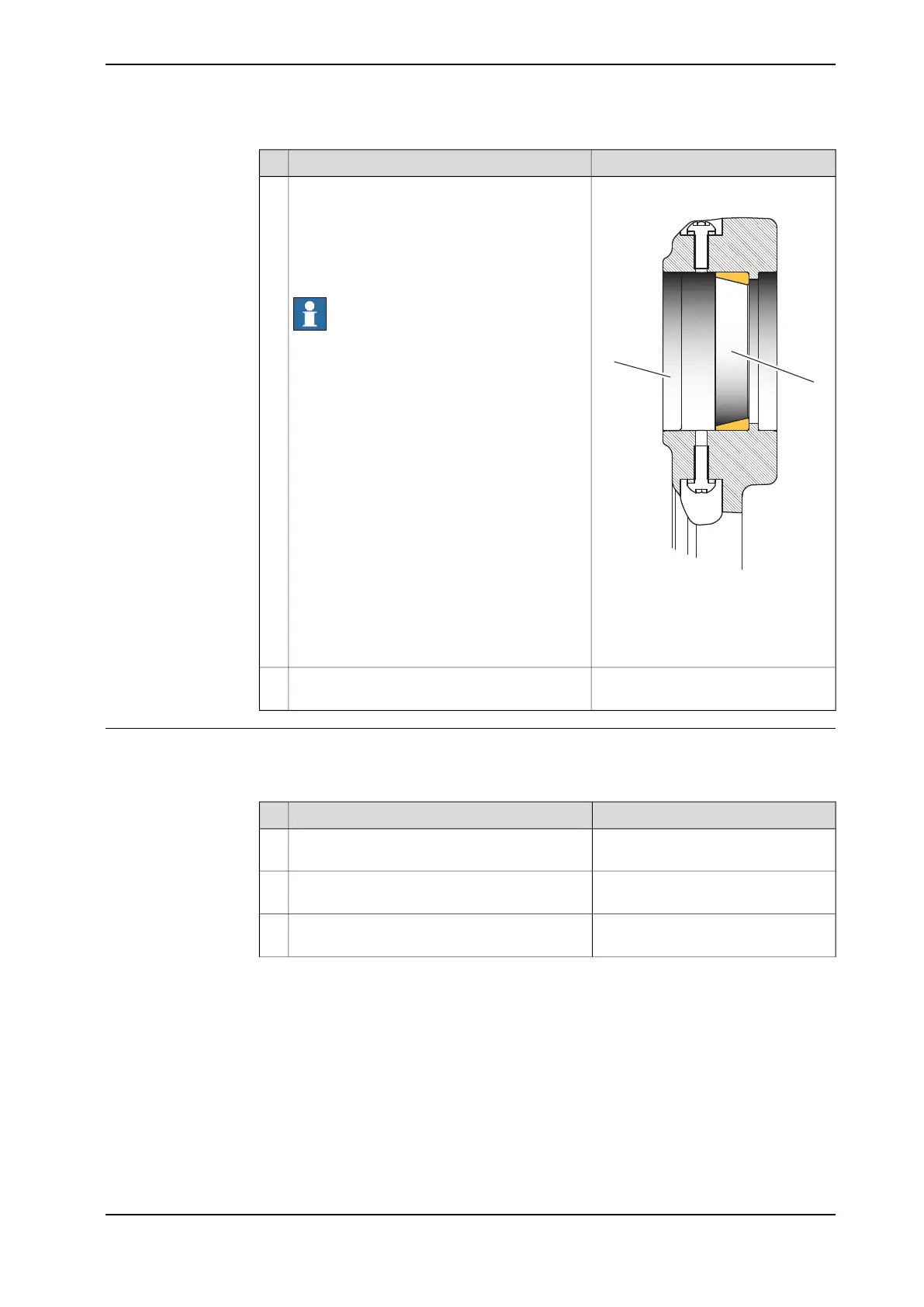

Fit the outer race of the bearing. Normally this
can be done by hand.
If needed apply the press tool pre-mounting
bearing and fit the outer race of the bearing.
See Press tool pre-mounting outer race bear-
ings on page 193.
Note
Check that the races are turned the correct way!
See figure!
4
Parts:
A: Surface for VK cover
B: Outer race bearing axis 2
side
See X-ray view of the assembly of the
tilthouse unit on page 192.
Apply grease on the inner diameter of the radial
sealing.
5
Premounting outer race of bearing and radial sealing, axis 3 side
Use this procedure to fit the outer race of the bearing and radial sealing in the
tilthouse on the axis 3 side, before fitting the tilthouse to the upper arm.
NoteAction
This work is best done on a workbench or sim-
ilar.
1
See X-ray view of the assembly of the
tilthouse unit on page 192.
Fit the radial sealing in the hole.2
Art.no. is specified in Required
equipment on page 192.
Apply some grease in the hole for the bearings.3
Continues on next page
Product manual - IRB 460 203
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
