NoteAction
xx1100000196

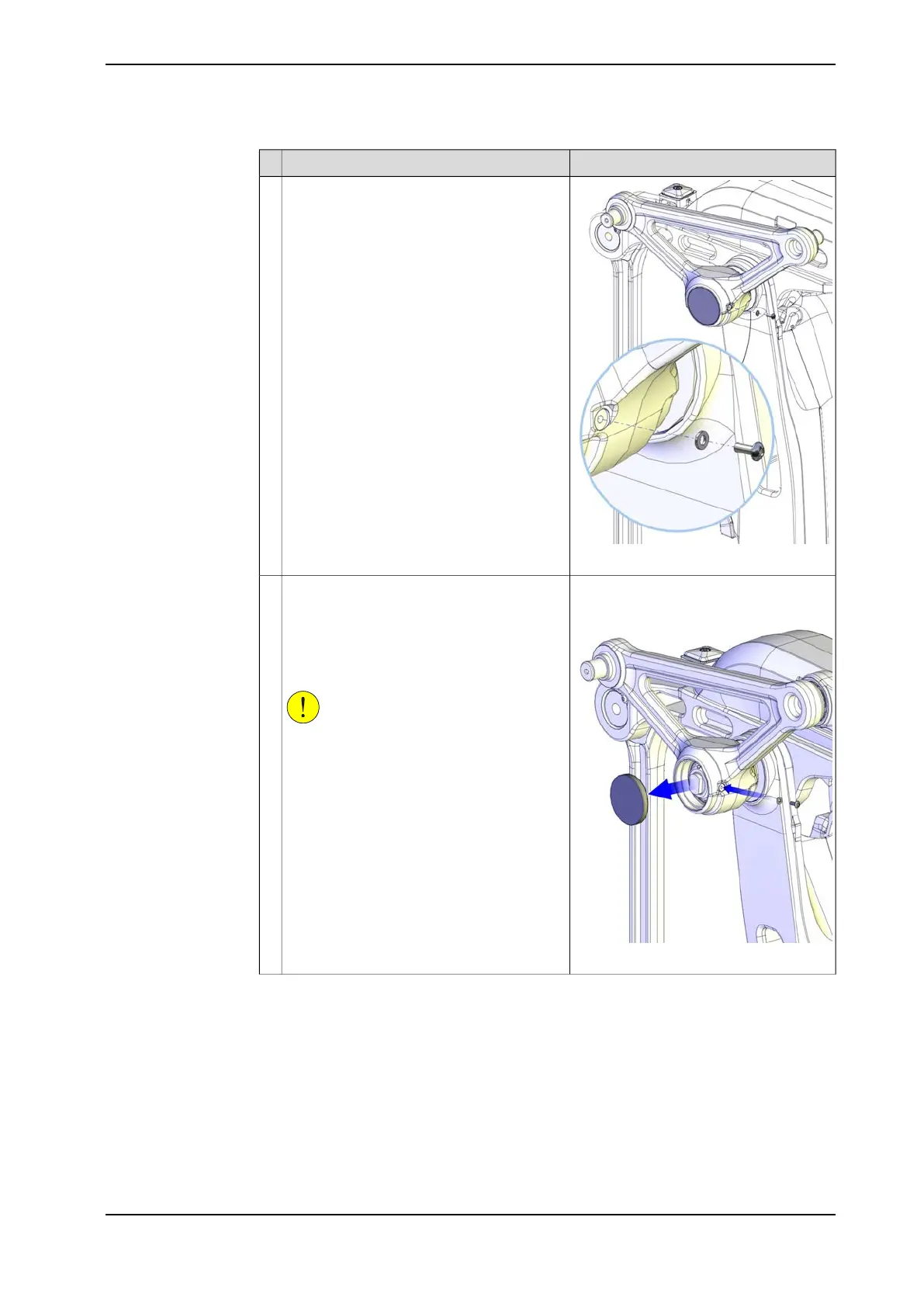

Remove screw and washer in the hole for
filling grease.
5
xx1100000195
Use compressed air to remove the VK cover.
Blow with a very low air pressure into the hole
for filling grease.
Put one hand with some paper on top of the
VK cover in order to catch it when it is re-
leased.
CAUTION
Only a very low air pressure is needed!
6
Continues on next page
Product manual - IRB 460 245
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.6 Replacing the linkage - link
Continued
