NoteAction
xx1100000141

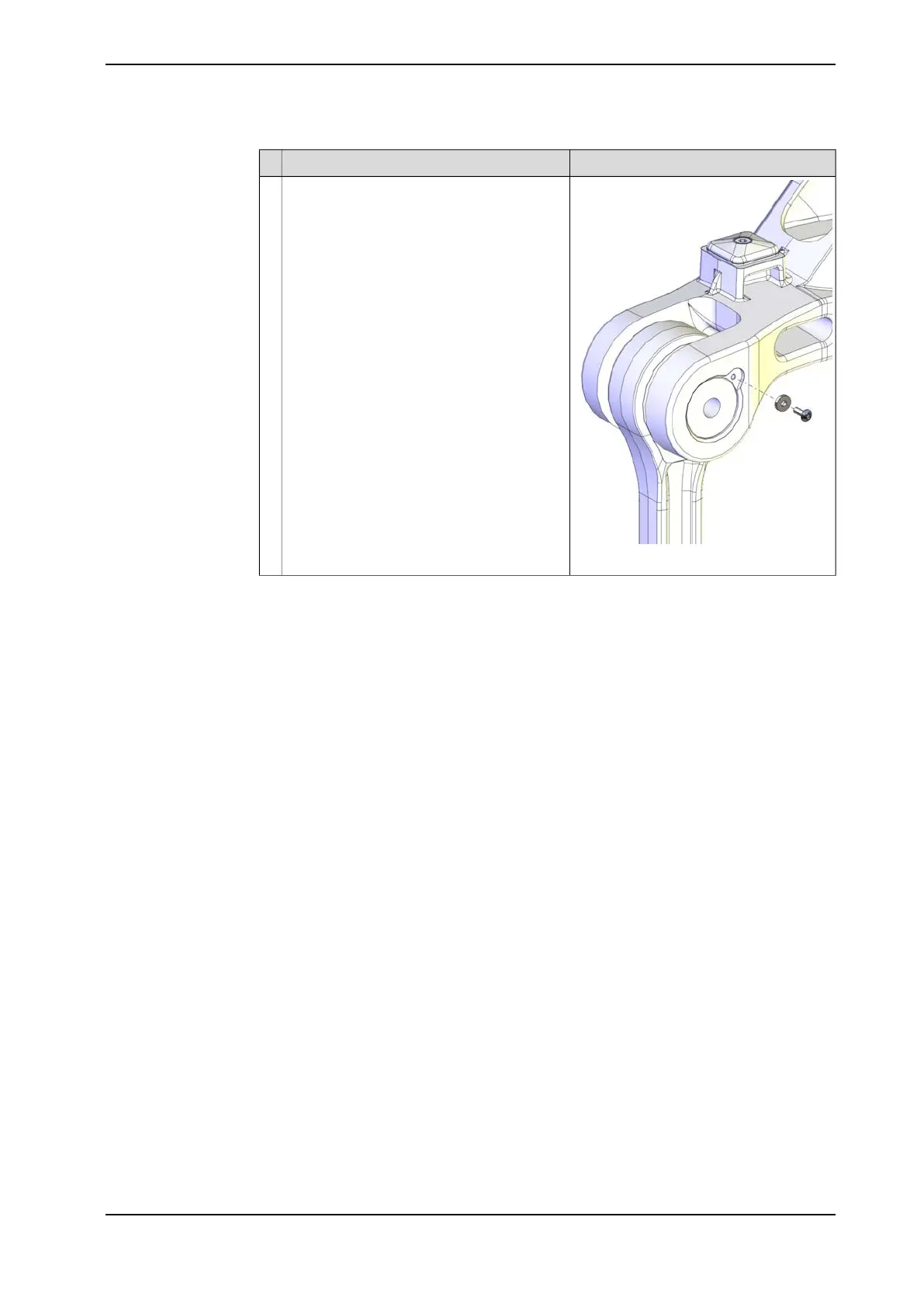

Remove the lock screw and washer, securing
the shaft of the parallel rod in position.
3
Continues on next page
Product manual - IRB 460 259
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.8 Replacing parallel rod
Continued
