NoteAction
xx1000001166

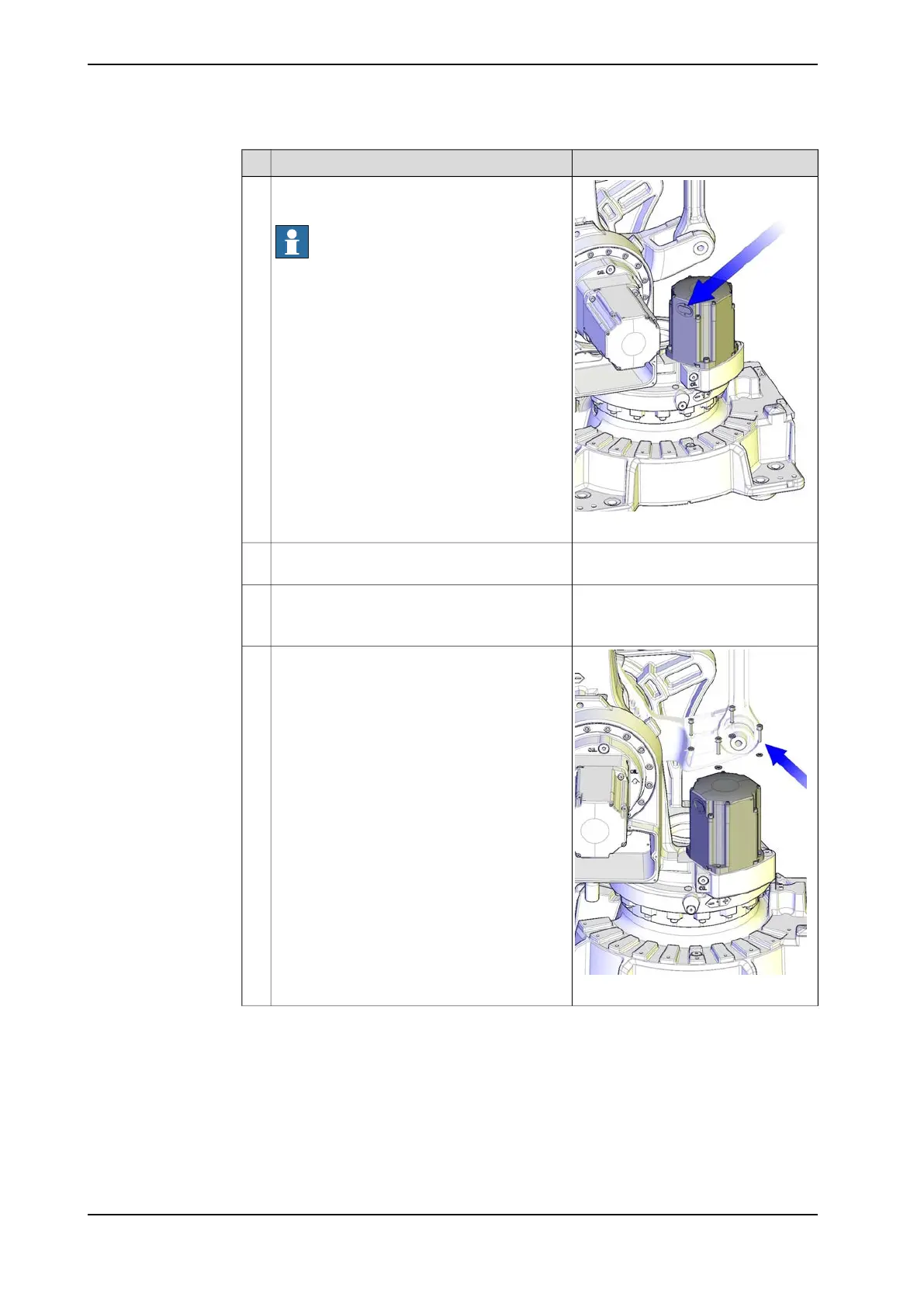

Remove the cable gland cover at the cable exit
of the motor.
Note
Make sure the gasket is undamaged! Replace
if damaged.
4
Disconnect all connectors beneath the motor
cover.
5
Connect to connector R2.MP1
• + : pin 2
• -: pin 5
In order to release the brake, connect the 24
VDC power supply.
6
xx1000001167
Remove the attachment screws of the motor.
Use the bits extension.
7
Continues on next page
288 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.5.1 Replacing motor, axis 1
Continued
