ABB IRB 460 Series - Page 343

NoteAction

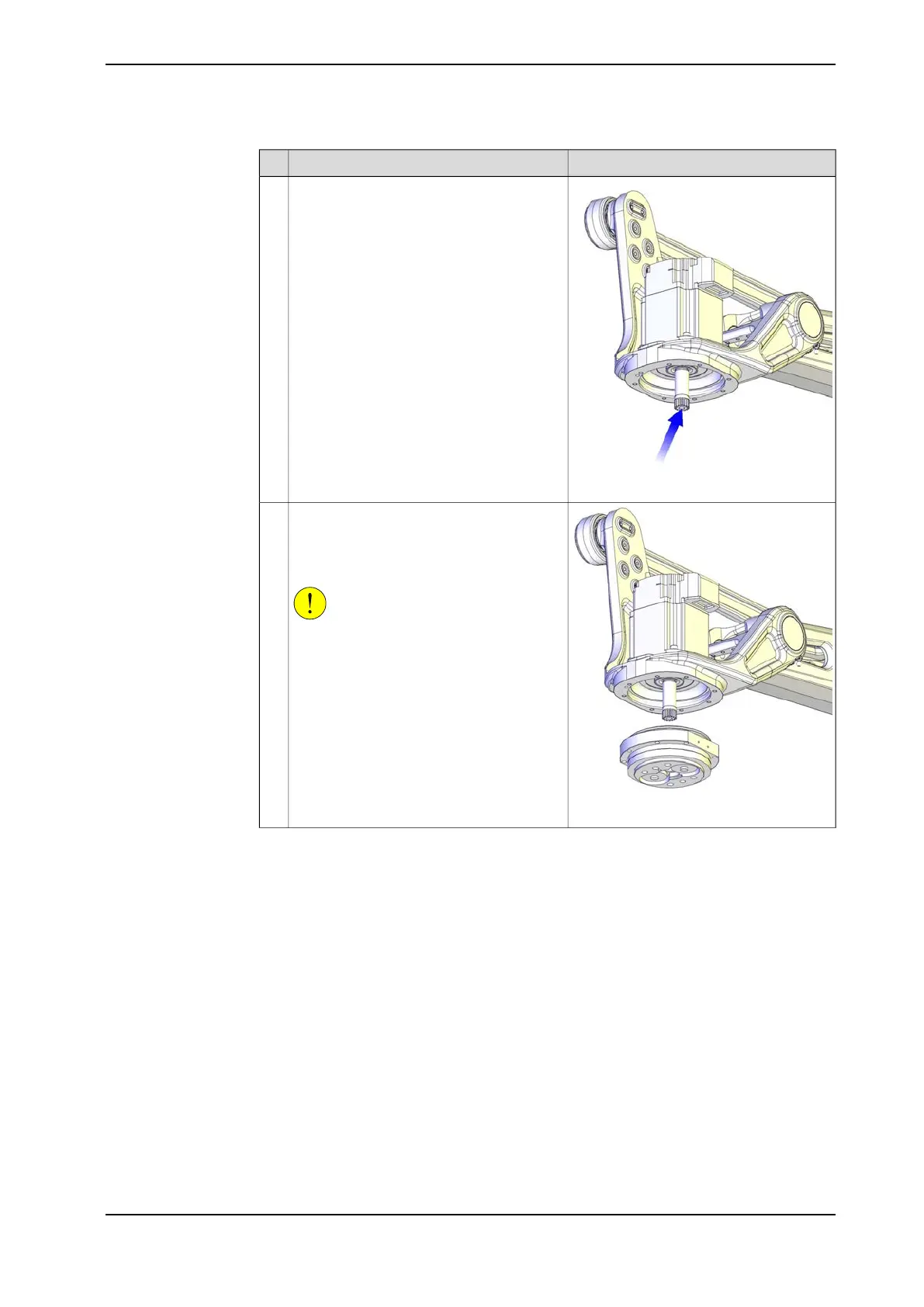

xx1100000240
Check that the pinion is undamaged on the
axis 6 motor.
4
xx1100000242
Carefully insert the axis 6 gearbox into the
tilthouse, using guide pins.
Make sure the gears of the gearbox mate
with the pinion of the axis 6 motor.
CAUTION
Do not damage pinion or gears in the pro-
cess!
