NoteAction
xx2200001419

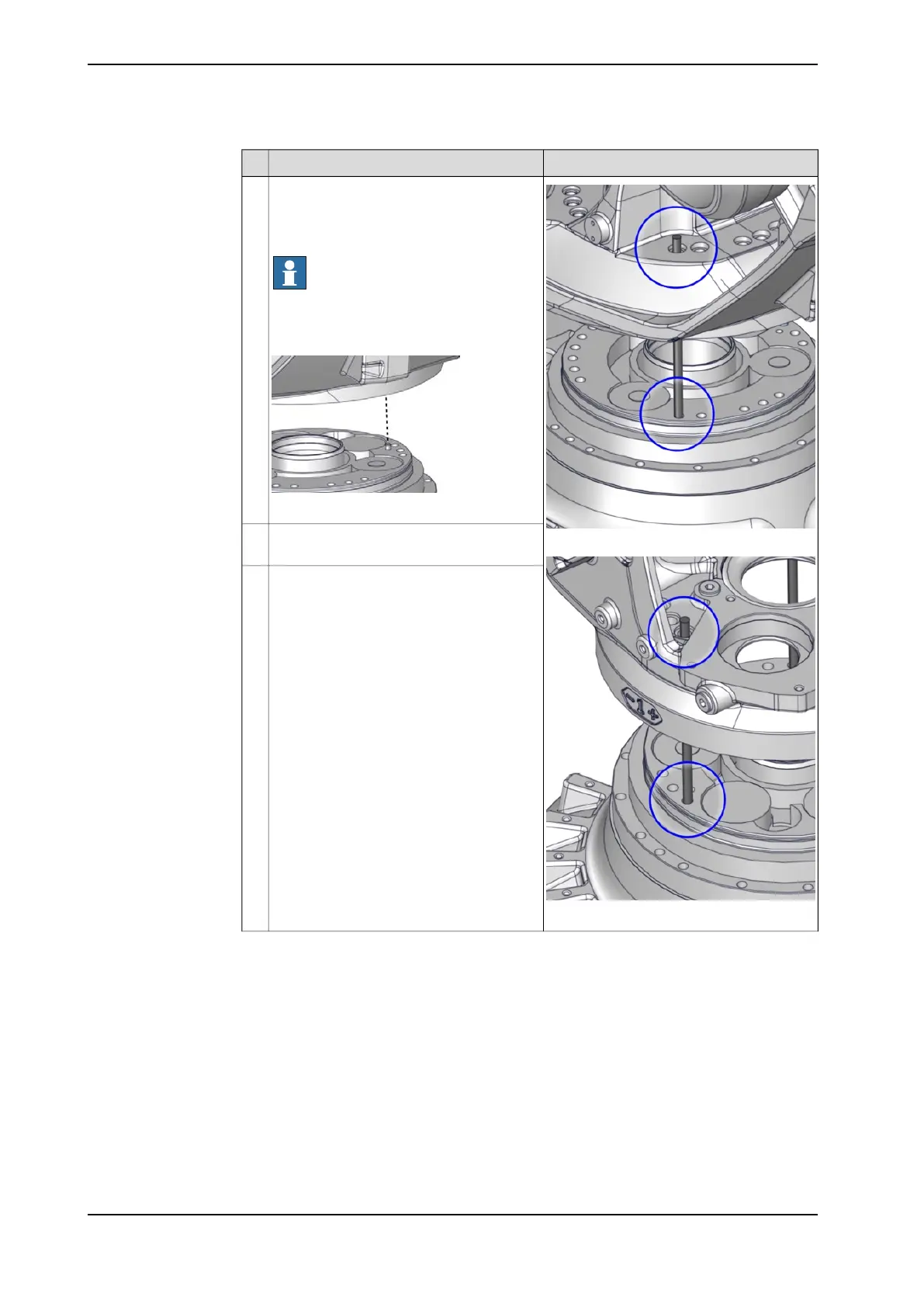

Lift the arm system to mounting position,
and verify that the hole pattern match and
that the guide pins will enter the correct
holes in the frame.
Note
Also check that the guiding pin in the
gearbox is aligned with the pin hole in the
frame.
xx2300000013
7
Lower the arm system to align the longest
guide pin into the hole.
8
xx2200001420
Lower the arm system to align the other
guide pin into the hole.
9
