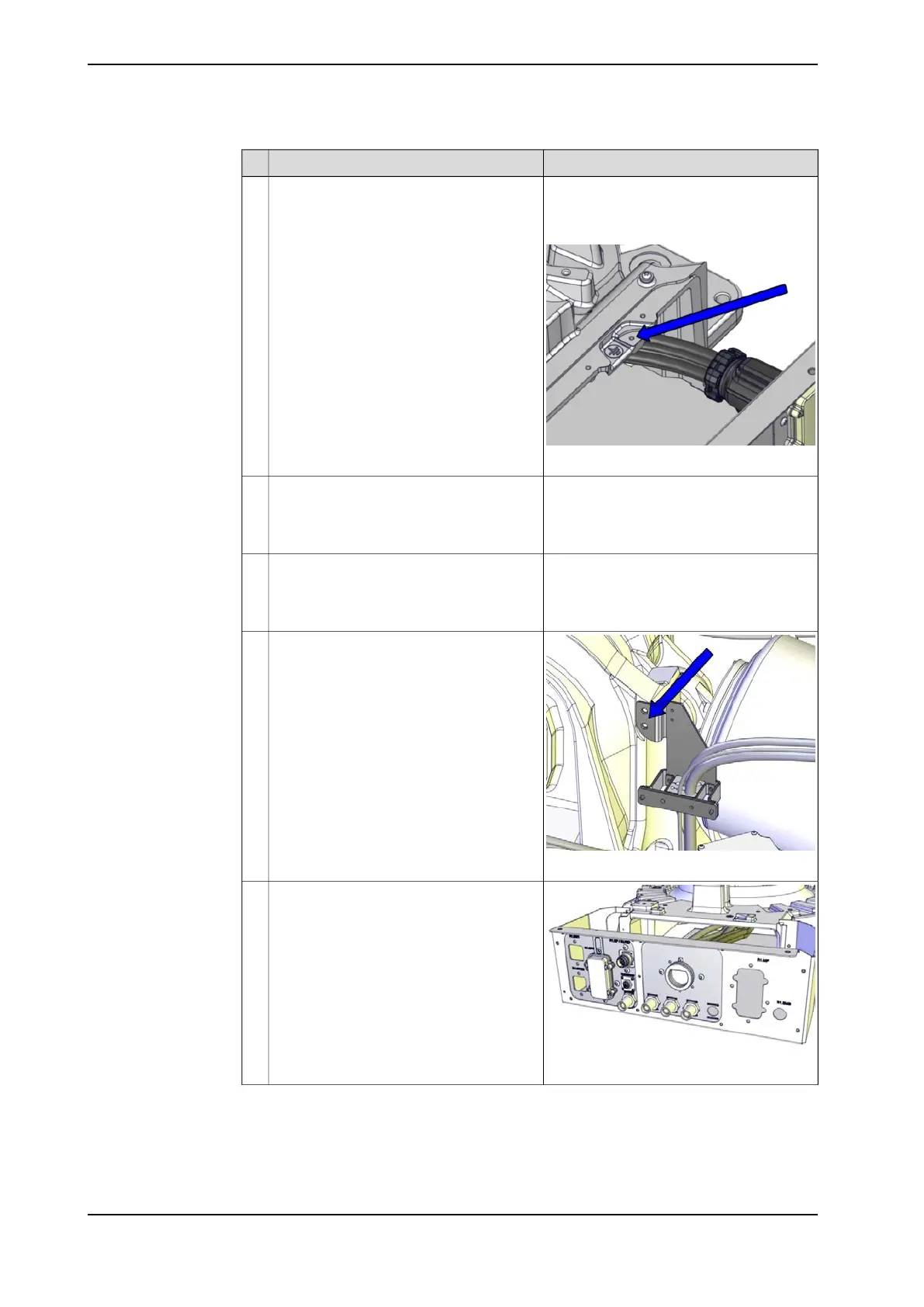

NoteAction
Screw dimension: M6x16.Connect the earth cable.5
Washer dimension: 6.4x17x3.
Tightening torque: 10 Nm.
xx2200001790
If used, run the DressPack cables through
the protection tube in the base.
6
If necessary, lubricate the cables with
grease to make them run more smoothly.
If used, run the DressPack hoses through
the protection tube in the base.
7
Make sure that the hoses are running cor-
rectly and are not twisted!
xx1400000078
If used, fit the bracket that hold the
DressPack to the frame.
8
xx1200000052
If used, connect the DressPack cable
package on the base plate.
9
