ABB Terra 124 - Remove the Cabinet from the Pallet; Transport the EVSE on the Site; Hoist the Cabinet

Procedure

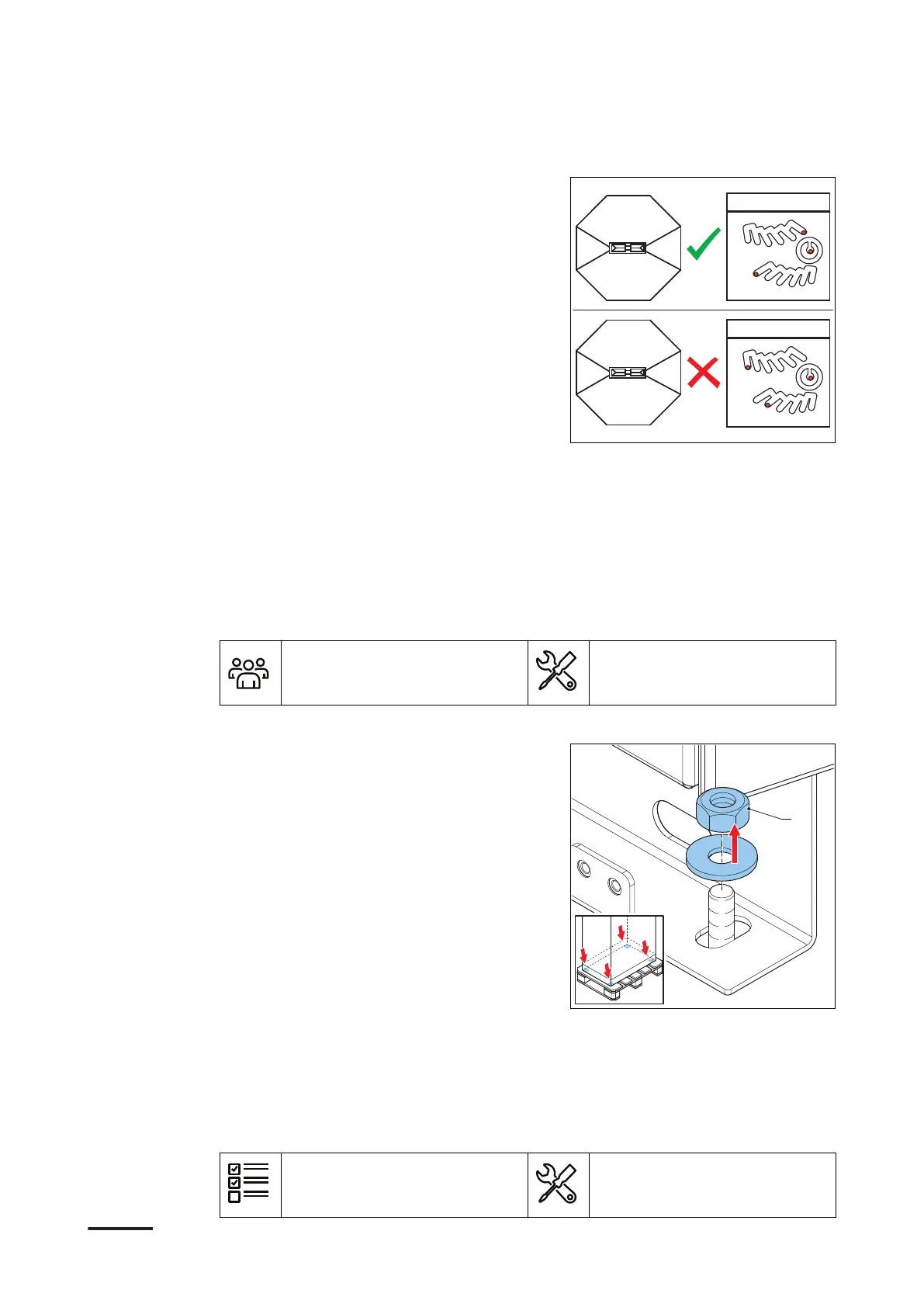

1. Do a check on the sensors (A) that
record the shocks during transport.
2. Do a check on the sensors (B)
that record the maximum tilt during
transport.
3. If the sensors (A) show a red
indication or the sensors (B) show a
tilt that is too high, do these steps:
For the transport specifications, refer
to section 10.4.
a. Refuse the delivery of the EVSE.
b. Make a note on the delivery
receipt.
c. Within three days of the delivery,
ask the transport company for an inspection.
d. If you see damage on the cabinet, through the packaging material, do not
unpack the EVSE.
e. Contact the manufacturer and give details of the delivery problems. Refer to
section 1.12.
4.2.3 Remove the cabinet from the pallet
Preliminary requirements
• Installation engineer
• Open spanner
Procedure
1. Remove the fasteners (A).
2. Discard the fasteners and the pallet.
Refer to section 2.11.
4.3 Transport the EVSE on the site
4.3.1 Hoist the cabinet
Preliminary requirements
• The cabinet is unpacked.
Refer to section 4.2.
• Hoisting equipment. Refer
to section 10.5.
TiltWatch PLUS
TiltWatch PLUS
ShockWatch
ShockWatch
A B
A B
A
Inspection and transport
