Parameter Specification
Signal description TB label
Grey cable Tilt switch NC con-
tact
NC
Blue cable Tilt switch COM
contact
COM

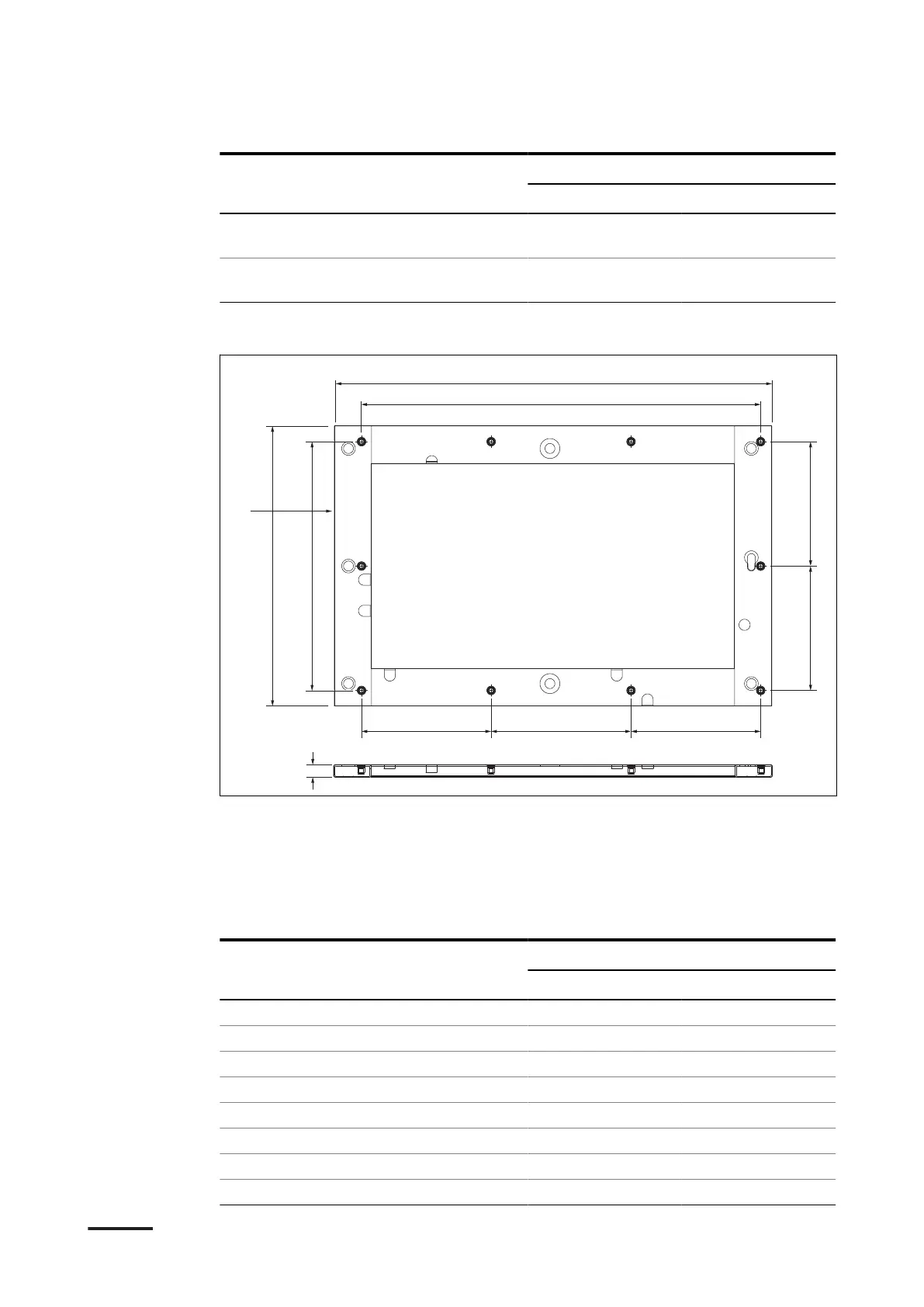

10.10.4 The alternative base with reduced height
X1
X2
X3
X3
Y3
Z
Y3Y4
Y1
Y2
A
A Front side of the base
X1 Width of the base
X2 Distance between the outer
fixation holes
X3 Distance between 2 fixation holes
Y1 Depth of the base
Y2 Distance between the 4 fixation
holes
Y3 Distance between the outer
fixation holes
Y4 Distance between the middle
fixation holes
Z Height of the base
Parameter Specification
[mm] [in]
X1 450 17.7
X2 400 15.7
X3 200 7.9
Y1 704 27.7
Y2 642 25.3
Y3 208.5 8.2
Y4 225 8.9
Z 20 0.8
Technical data
78 9AKK108466A3703-EN | 001
