5.8.2 Mount the clamp
For the specifications for the cable management system, refer to section 10.11.
1. Pull the wire and hold it firmly. At the same time connect the clamp to the wire.
Apply a knot.
The correct location for mounting the clamp is at approximately half way on the
EV charge cable.
2. Slowly release the wire.
The EV charge cable folds with one loop, depending on the cable length.

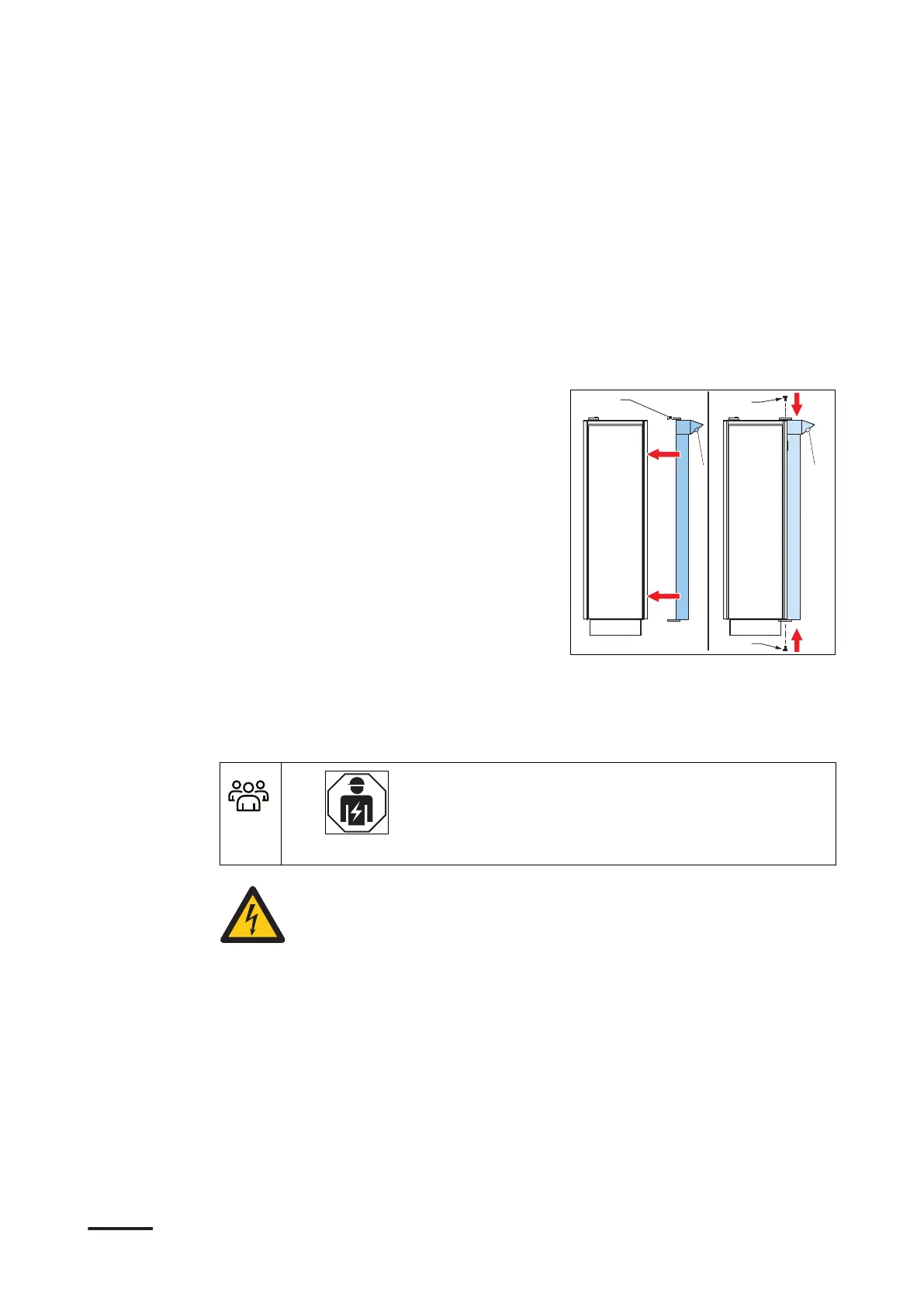

5.8.3 Install the cable management system
1. Install the head (A) on the EVSE in the
eyebolt hole.
2. Tighten the fasteners (B) first on the
top part, then in the lower part.
5.9 Prepare for commissioning
Preliminary requirements
•
Installation engineer
Danger:
Hazardous voltage
• Do not commission the EVSE. Only a service engineer of the
manufacturer is qualified to commission the EVSE.
A
B
B
Installation
