10.12.3 Mass of the EVSE (without packaging material)
Parameter Specification
[kg] [lb]
Terra 94 355 780
Terra 104, 124 370 815
Terra 184 400 880
Cable management system (optional)
for one cable, no counterweight*
15 33
Cable management system (optional)
for two cables, no counterweight*
30 66
Cable management system (optional),
single counterweight*
3 6.6
* The number of counterweights depends on the cable installed on the EVSE. For
the suggested number of counterweights, refer to section 10.11.

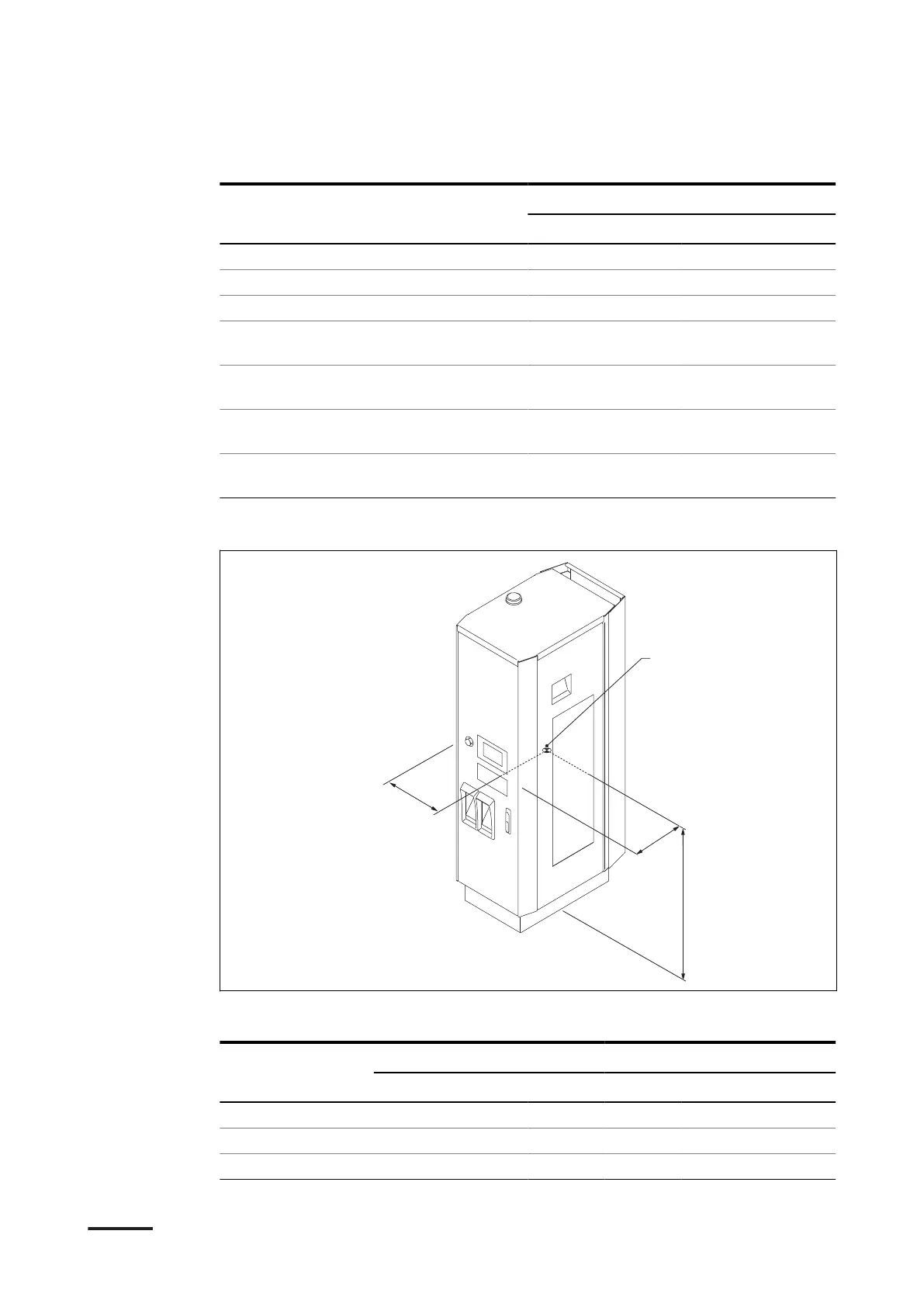

10.12.4 Center of gravity
X
Z
Y
A
A Center of gravity
X Location of A in EVSE width
Y Location of A in EVSE depth
Z Location of A in EVSE height
Parameter Specification [mm] Specification [in]
X Y Z X Y Z
Terra 94 256 415 1070 10.08 16.34 42.13
Terra 104/124 256 420 1073 10.43 16.54 42.24
Terra 184 261 423 1068 10.28 16.65 42.05
Technical data
9AKK108466A3703-EN | 001 81
