10.12.8 Alternative base with side entrance
X1
Z
Y2
Y1
Y3 Y4 Y3
X
2
X2
A

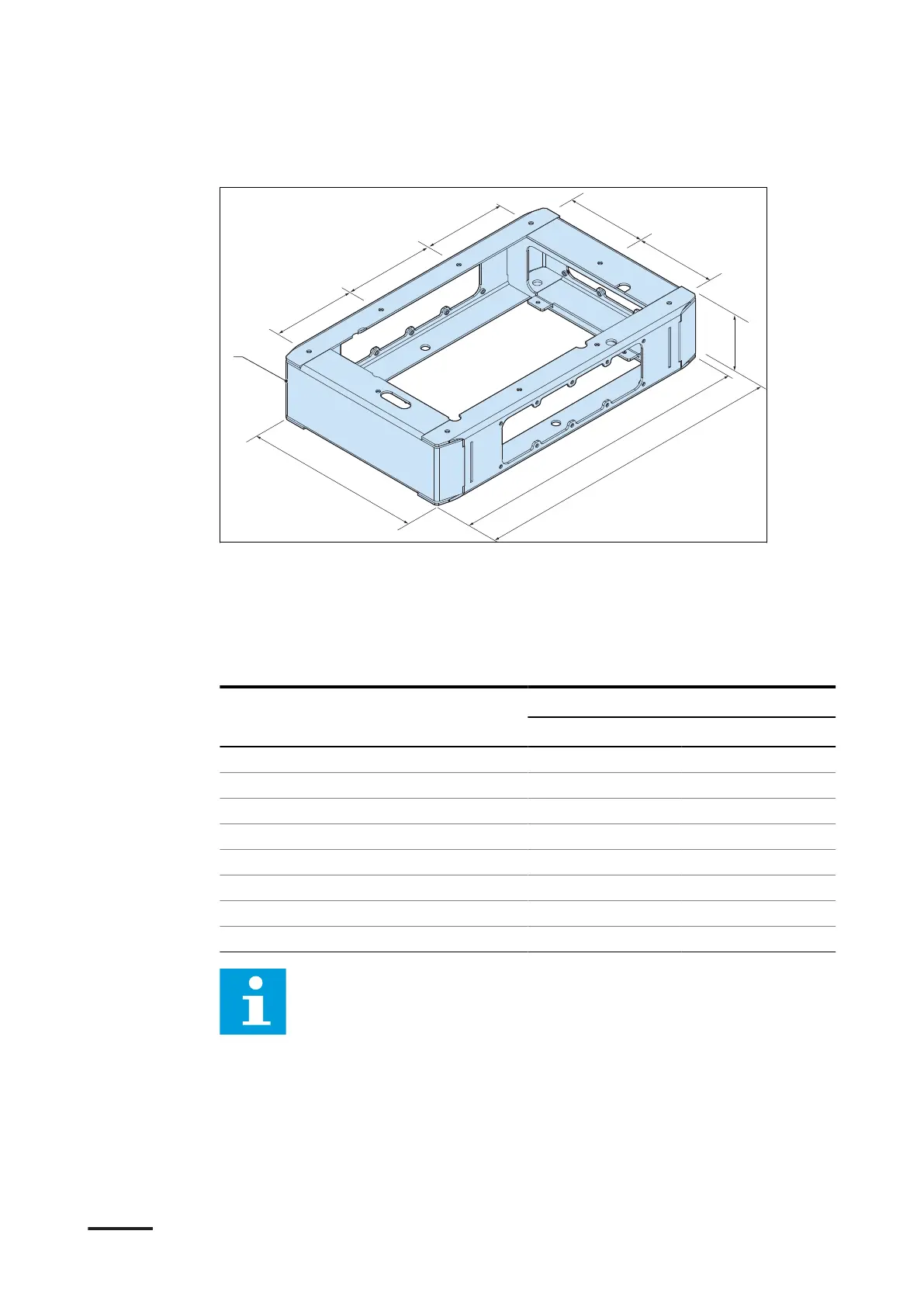

A Front side of the base
X1 Width of the base
X2 Distance between the outer
fixation holes
X3 Distance between 2 fixation holes
Y1 Depth of the base
Y2 Depth of the base including the
fasteners
Y3 Distance between the outer
fixation holes
Y4 Distance between the middle
fixation holes
Z Height of the base
Parameter Specification
[mm] [in]
X1 450 17.7
X2 400 15.7
X3 200 7.9
Y1 760 30.0
Y2 752 29.6
Y3 208.5 8.2
Y4 225 8.9
Z 152.4 6
Note:
Guide the AC cables from the rear side of the EVSE to avoid obstacles
and fall hazards.
